Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan and transmission internal oil filter. Refer to Oil Pan Replacement .
    IMPORTANT: Individual pressure switches cannot be replaced. When any pressure switch needs replacing, the entire assembly must be replaced.
    IMPORTANT: The modulated main pressure solenoid G has been removed for clarity.
  2. Remove the two bolts (2). Remove the reverse signal pipe (1).
    Fig 1: Removing The Reverse Signal Pipe
    GM658988Courtesy of GENERAL MOTORS CORP.
    3. CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

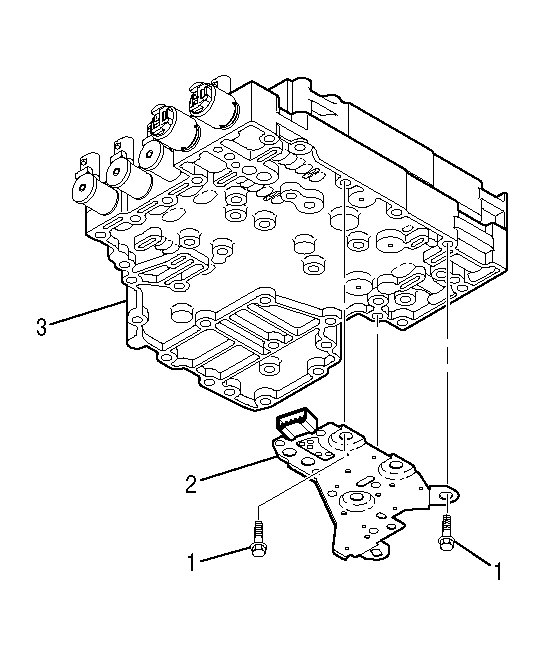

    Fig 2: Locating TFP Switch
    GM658992Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the internal wiring harness connector from the transmission fluid pressure (TFP) switch (2).
  4. Remove 5 bolts (1). Remove the TFP switch (2).
