Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the new TFP manifold assembly (2) in position and install one bolt (1) in a recessed location to hold in position. Start the remaining four bolts (1) in recessed locations and tighten the bolts by hand.

    Tighten:  Torque the bolts to 12 N.m (108 lb in).

    NOTE: Refer to Fastener Notice in Cautions and Notices.
    Fig 1: Locating TFP Switch
    GM1371105Courtesy of GENERAL MOTORS CORP.
  2. Connect the internal wiring harness connector to the TFP switch.

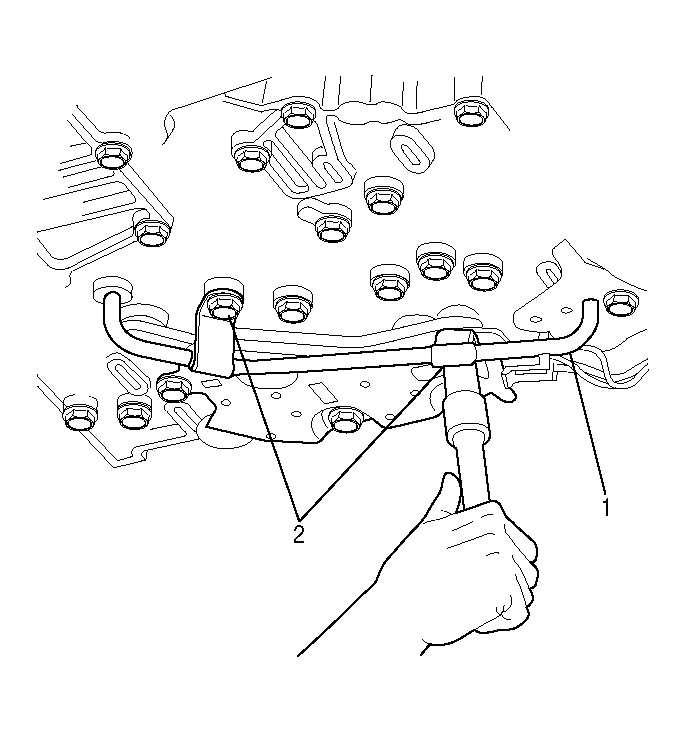

    3. Fig 2: Installing The Reverse Signal Pipe
    GM658988Courtesy of GENERAL MOTORS CORP.
  3. Install the reverse signal pipe (1). Install two bolts (2).

    Tighten:  Tighten the bolts to 12 N.m (108 lb in).

  4. Install the oil pan and transmission internal oil filter. Refer to Oil Pan Replacement .
