Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove 6 bolts (3).

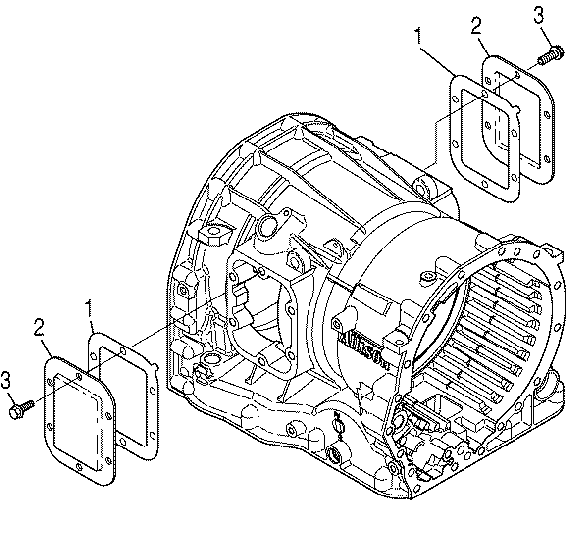

    Fig 1: Power Take-Off (PTO) Cover And Gasket
    GM658995Courtesy of GENERAL MOTORS CORP.
  2. Remove the power take-off (PTO) cover (2) and gasket (1). Discard the used gasket.
  3. Ensure the PTO gasket face on the transmission case is free of all foreign material, nicks and scratches.
