Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring (1) on the pressure tap plug (2).

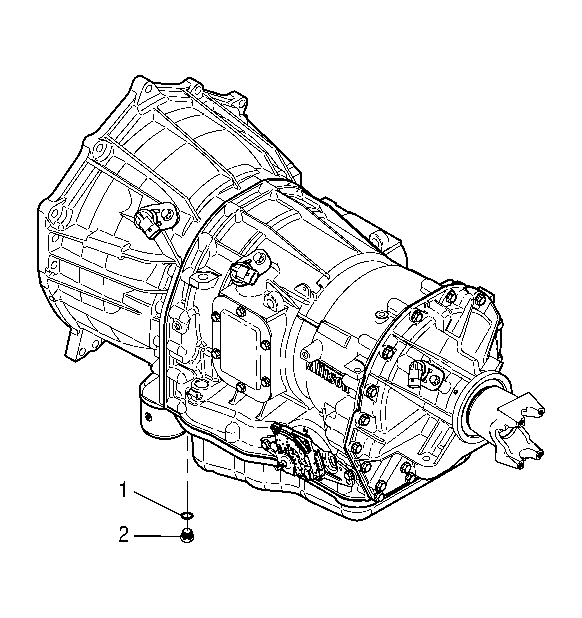

    Fig 1: Installing Pressure Tap Plug
    GM1372078Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the plug and O-ring into the converter housing.

    Tighten:  Tighten the plug to 12 N.m (108 lb in).
