Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Instal the cable to the hole in the floor panel.
    Fig 1: Installing The Cable To The Hole In The Floor Panel
    GM858974Courtesy of GENERAL MOTORS CORP.
  2. Install the cable grommet to the floor panel.
    Fig 2: Installing The Cable Grommet To The Floor Panel
    GM869202Courtesy of GENERAL MOTORS CORP.
  3. Position the carpet and insulation around the driver's area.
  4. Raise the vehicle.

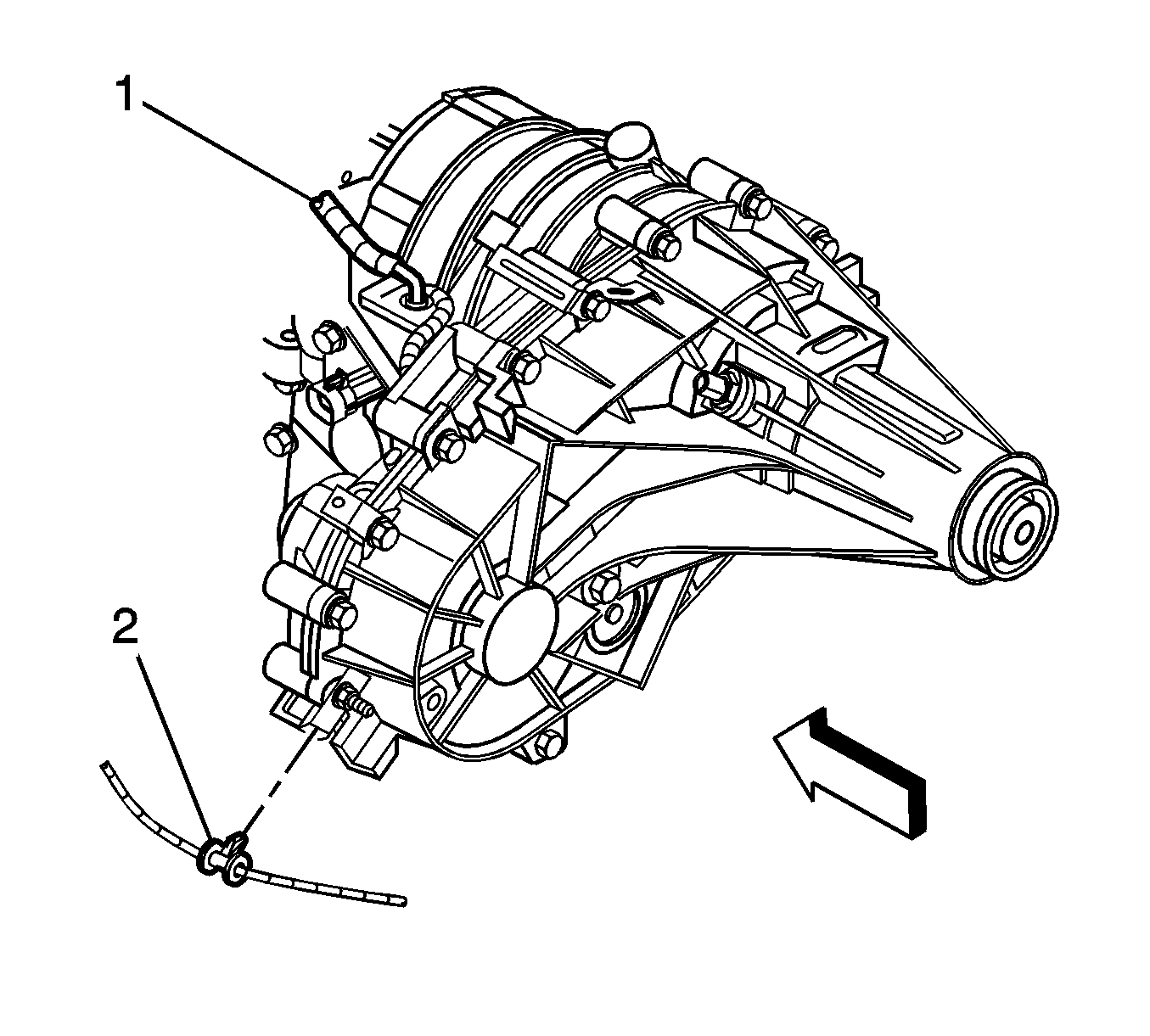

  5. Install the cable clips (2) to the transfer case, if equipped.
    6. Fig 3: Installing The Cable Clips To The Floor Panel Reinforcement
    GM394470Courtesy of GENERAL MOTORS CORP.
  6. Install the cable clips to the floor panel reinforcement.
  7. Ensure the transmission manual shaft is positioned in mechanical park.

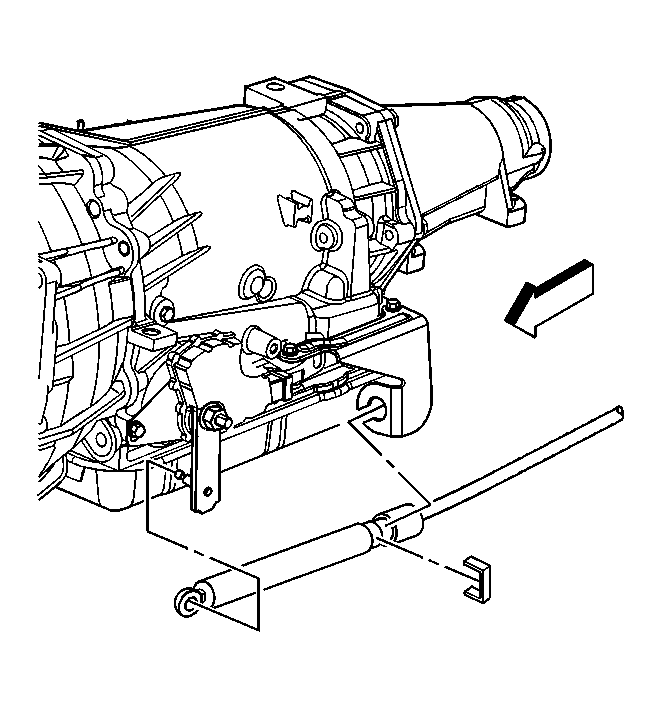

  8. Install the cable to the transmission bracket.
    Fig 4: Installing The Cable To The Transmission Bracket
    GM394469Courtesy of GENERAL MOTORS CORP.
  9. Install the retainer securing the cable to the bracket.
    10. Fig 5: View Of Range Selector Cable End At Transmission Range Selector Lever Ball Stud
    GM738167Courtesy of GENERAL MOTORS CORP.
  10. Install the range selector cable end (2) to the transmission range selector lever ball stud (1).
  11. Lower the vehicle.
    12. IMPORTANT: Avoid unnecessary twisting/bending of the range selector cable when removing the cable from the support.
    Fig 6: Installing The Range Selector Cable To The Support
    GM394466Courtesy of GENERAL MOTORS CORP.
  12. Install the range selector cable to the support.
    13. NOTE: Refer to Fastener Notice in Cautions and Notices.
    Fig 7: View Of Bolt Securing Selector Cable To Brace
    GM394467Courtesy of GENERAL MOTORS CORP.
  13. Install the bolt securing the cable support to the brace.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    14. Fig 8: Installing The Cable To The Steering Column Bracket
    GM858966Courtesy of GENERAL MOTORS CORP.
  14. Install the cable to the steering column bracket.
  15. Install the cable end to the steering column ball stud.
    16. Fig 9: Installing The Retainer Securing The Cable To The Steering Column
    GM858963Courtesy of GENERAL MOTORS CORP.
  16. Install the retainer securing the cable to the steering column.
  17. Install the instrument panel knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages, and Console.
  18. If all of the gear positions cannot be achieved, adjust the cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
