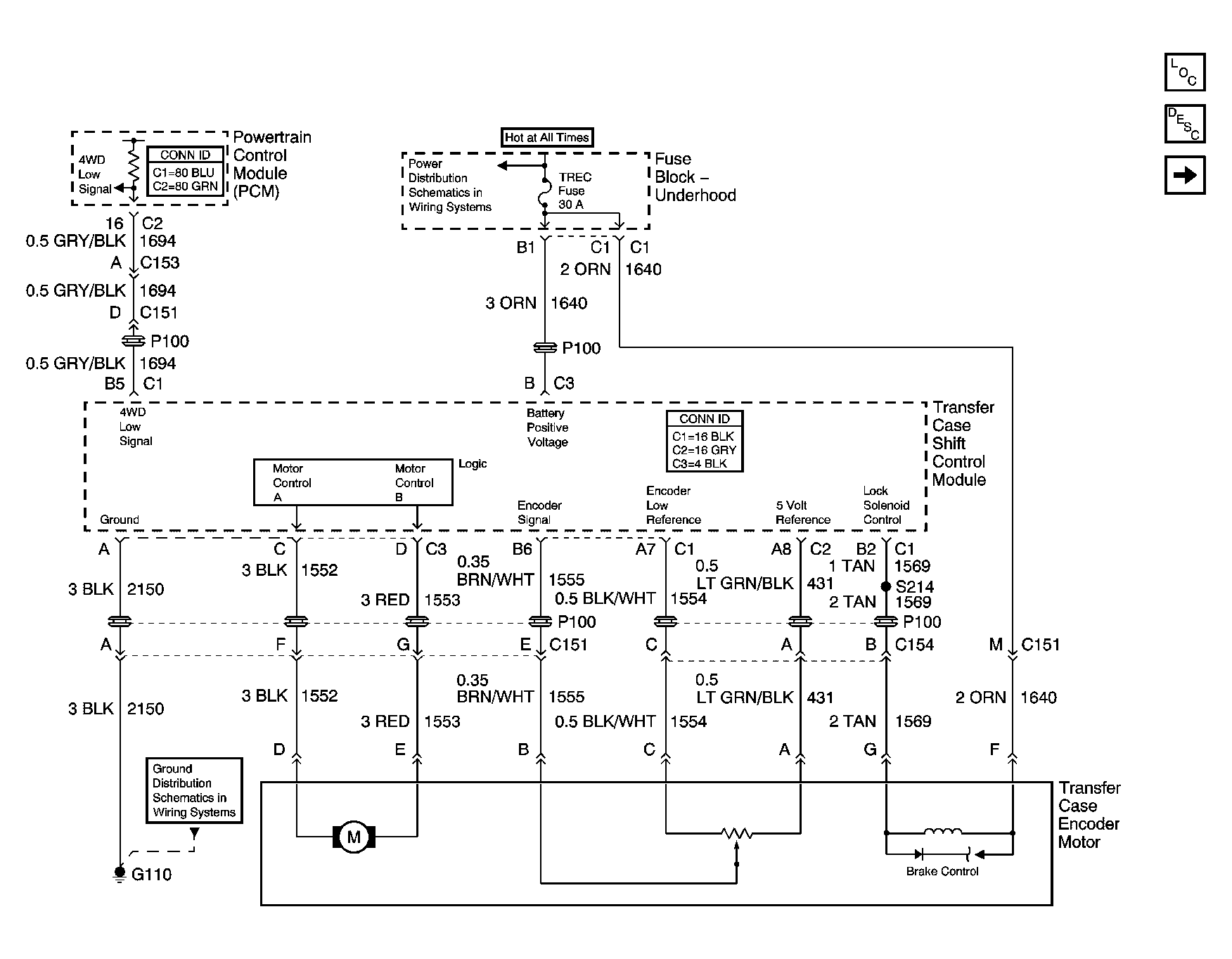

Fig 1: Power, Ground and Transfer Case Encoder Motor Schematic
Courtesy of GENERAL MOTORS CORP.

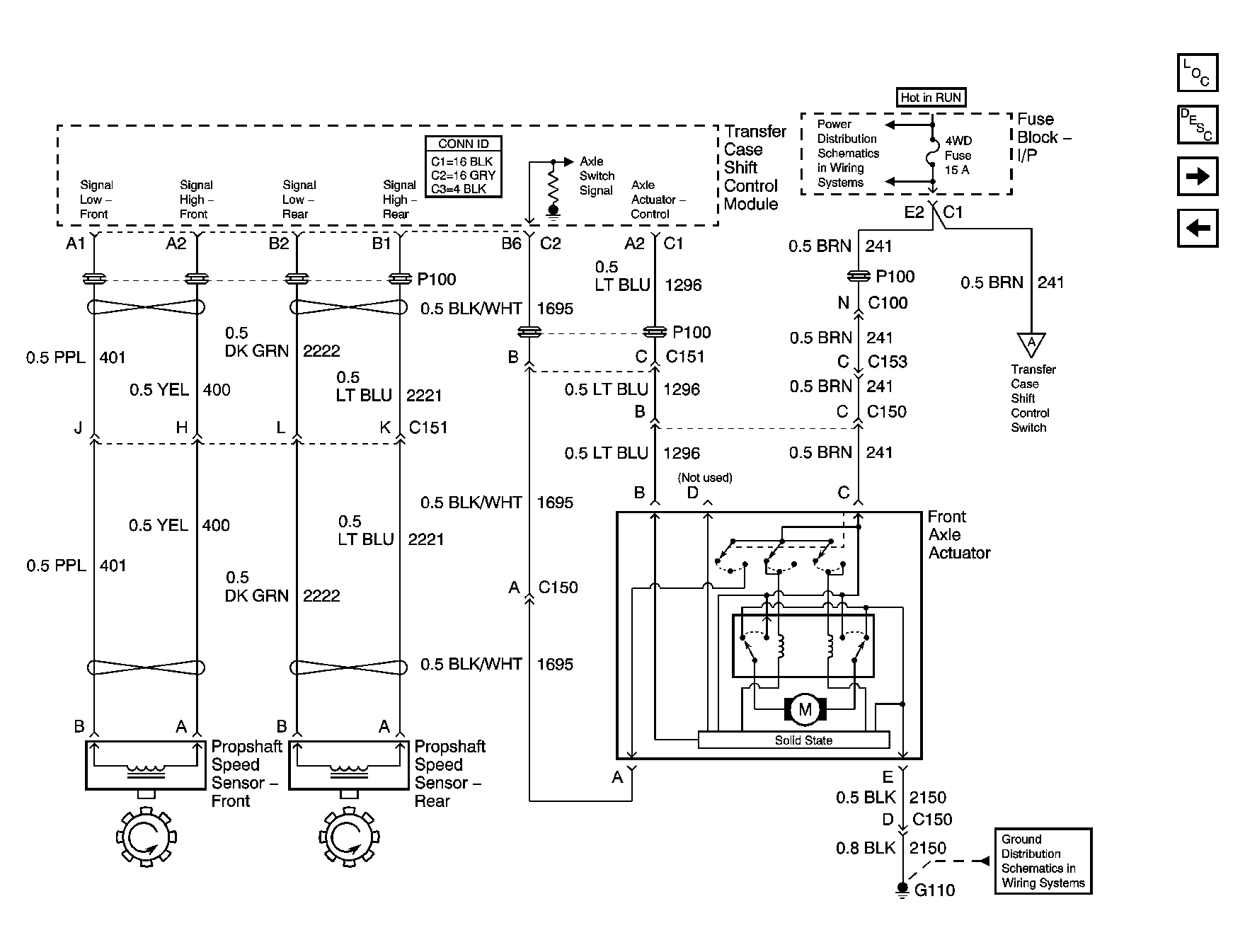

Fig 2: Propshaft Speed Sensors and Front Axle Actuator Schematic
Courtesy of GENERAL MOTORS CORP.

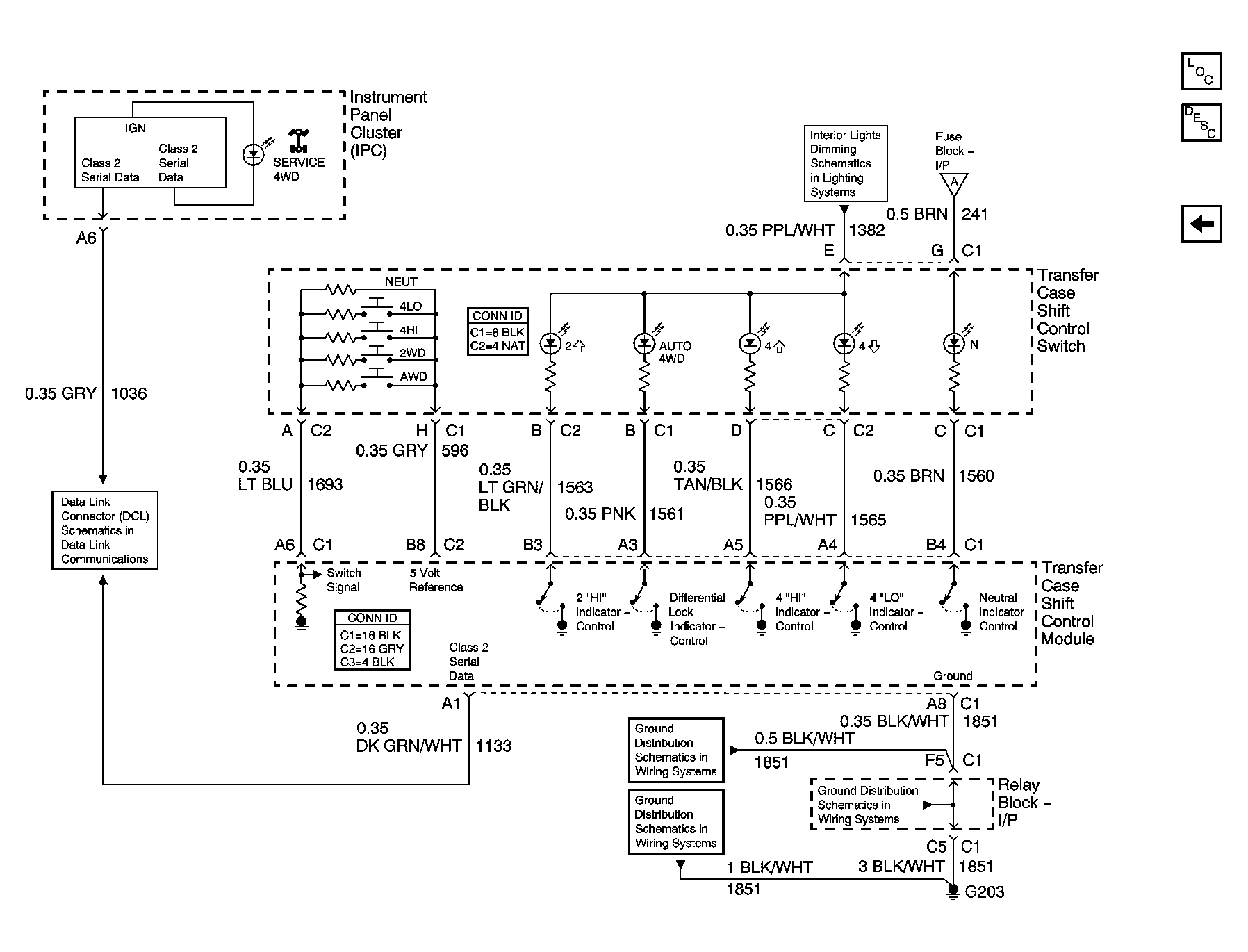

Fig 3: Switch Controls and Class 2 Serial Data Schematic
