Disassembly Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Replace the housing if the stub shaft housing, seal or bearing are damaged.

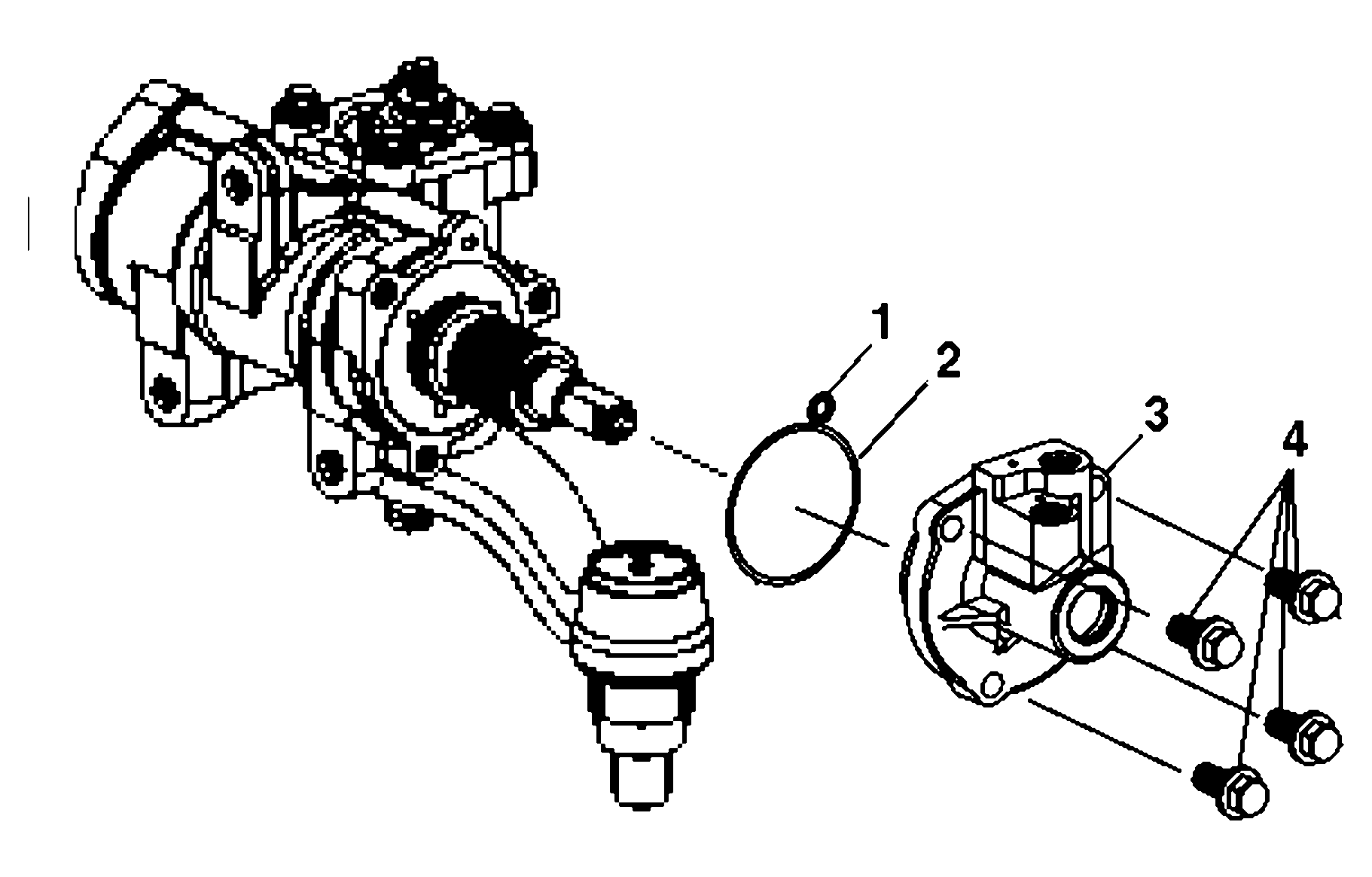

    Fig 1: Removing The Stub Shaft Housing From The Steering Gear (680 Gear)
    GM725641Courtesy of GENERAL MOTORS CORP.
  1. Remove the stub shaft housing bolts (4) from the stub shaft housing (3).
  2. Remove the stub shaft housing (3) from the steering gear.
  3. Remove the stub shaft housing O-rings (1) (2) from the steering gear.
