Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering gear from the vehicle. Refer to Power Steering Gear Replacement (Rack and Pinion)  or Power Steering Gear Replacement (Non Rack and Pinion) .
  2. Rotate stub shaft back and forth to drain the power steering fluid.
  3. Place J 42882  over the end of the stub shaft. Slide J 43435 over the top of J 42882  . Use a torque wrench to remove the lock nut from the steering gear housing.

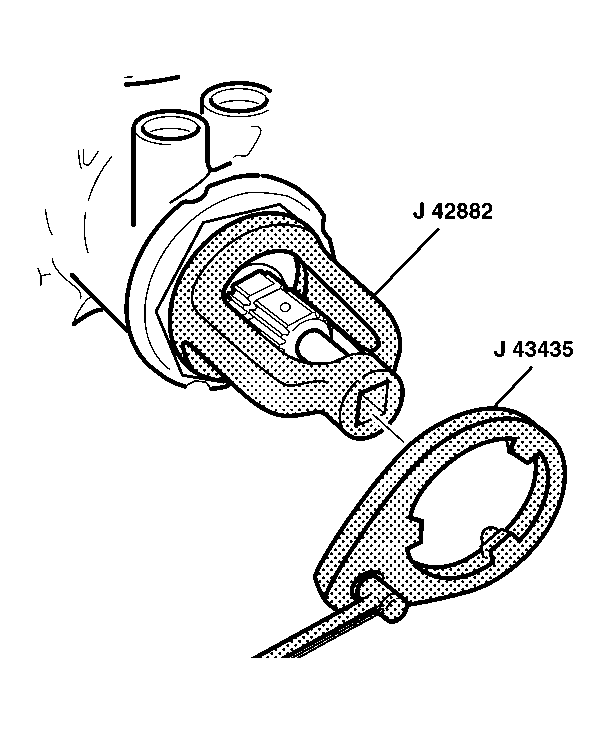

    Fig 1: Removing The Lock Nut From The Steering Gear Housing
    GM1501440Courtesy of GENERAL MOTORS CORP.

    J 43435 reverses to work with all available lock nut assemblies.

  4. Using J 42882  , remove the adjuster nut assembly from the steering gear housing.
    Fig 2: View Of Adjuster Nut Assembly, Steering Gear Housing & J 42882
    GM322012Courtesy of GENERAL MOTORS CORP.
  5. Remove the thrust bearing support from the steering gear housing.

    Discard the thrust bearing support.
