Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Power Steering Hose Disconnected Notice in Cautions and Notices.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear outlet hose (3) from the steering gear (2).

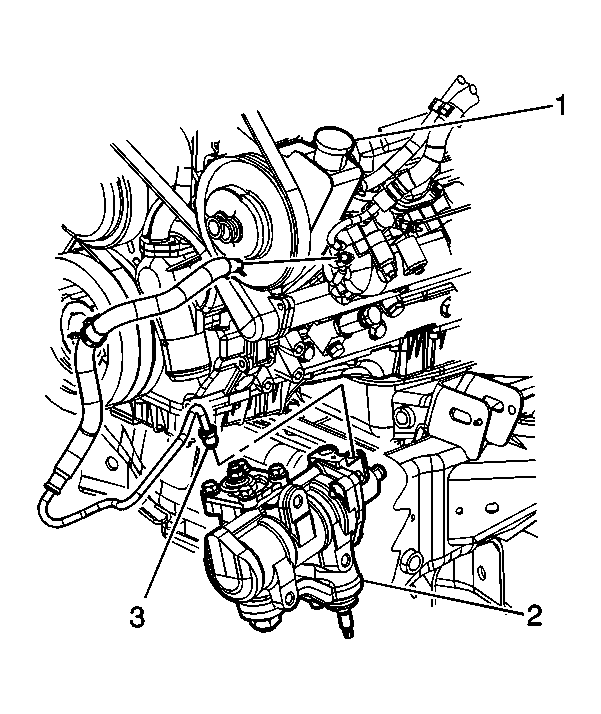

    Fig 1: Removing The Power Steering Gear Outlet Hose From The Steering Gear (Recirculating Ball)
    GM650864Courtesy of GENERAL MOTORS CORP.
  3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1).

    Remove the power steering gear outlet hose from the power steering pump.

  4. Remove the power steering gear outlet hose from the vehicle.
