Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Installing Hoses Without Twists or Bends Notice in Cautions and Notices.
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering gear inlet hose (3) to the power steering pump (1). Hand tighten only.

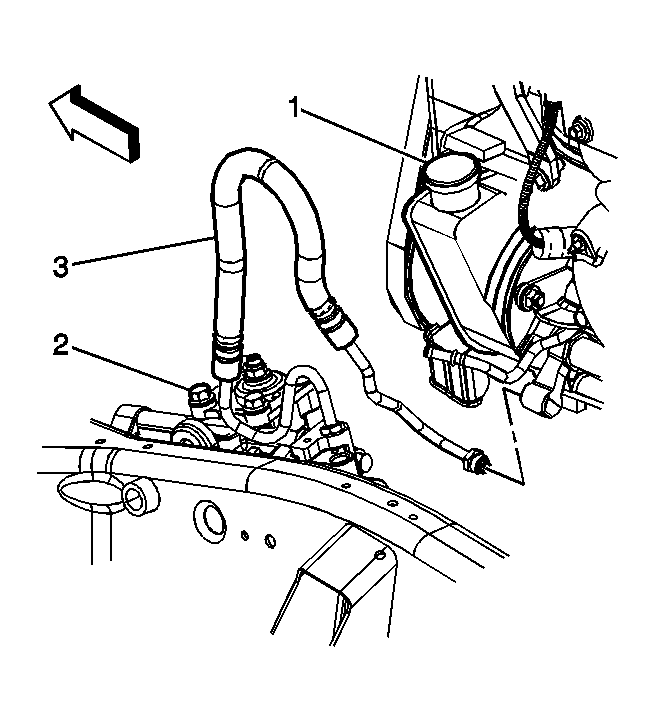

    Fig 1: Installing The Power Steering Gear Inlet Hose To The Power Steering Pump (Without Hydroboost)
    GM748675Courtesy of GENERAL MOTORS CORP.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the power steering gear inlet hose to the power steering gear.

    Tighten:  Tighten both power steering gear inlet hose fittings to 28 N.m (20 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and Underbody.
  6. Lower the vehicle.
  7. Bleed the power steering system. Refer to Bleeding the Power Steering System .
