Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    Fig 1: Installing Power Steering Cooler To The Vehicle (Without Hydroboost)
    GM686121Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering cooler (1) to the vehicle.

    Tighten:  Tighten the power steering cooler retaining bolts to 5 N.m (44 lb in).

  2. Connect the power steering outlet hose (3) to the power steering gear (4).

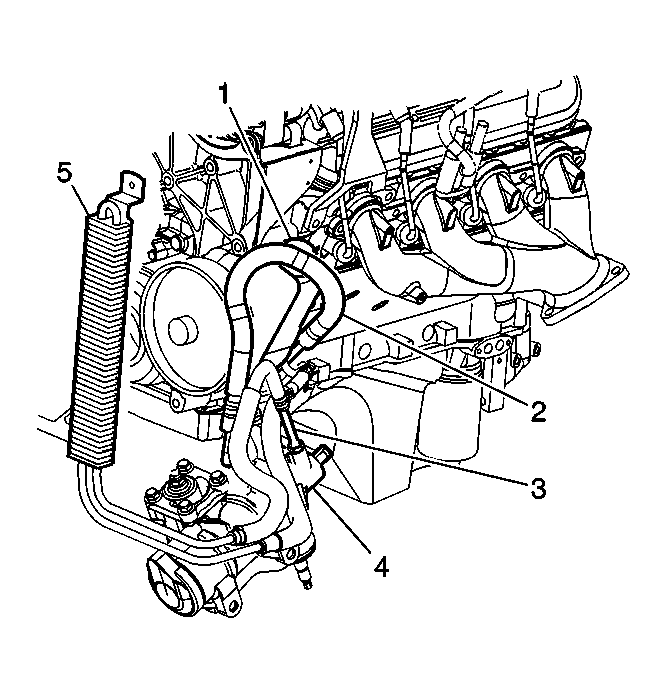

    Fig 2: Connecting Power Steering Cooler Hoses To The Power Steering Gear (Without Hydroboost)
    GM363081Courtesy of GENERAL MOTORS CORP.
  3. Install the retaining clamp.
  4. Connect the power steering inlet hose to the power steering pump.
  5. Install the retaining clamp.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  7. Inspect all the hose connections for leaks.
  8. Install the front grille. Refer to Grille Replacement (GMC) or Grille Replacement (Chevrolet) in Exterior Trim.
