Power Steering Gear Disassembled View (670 Gear)
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

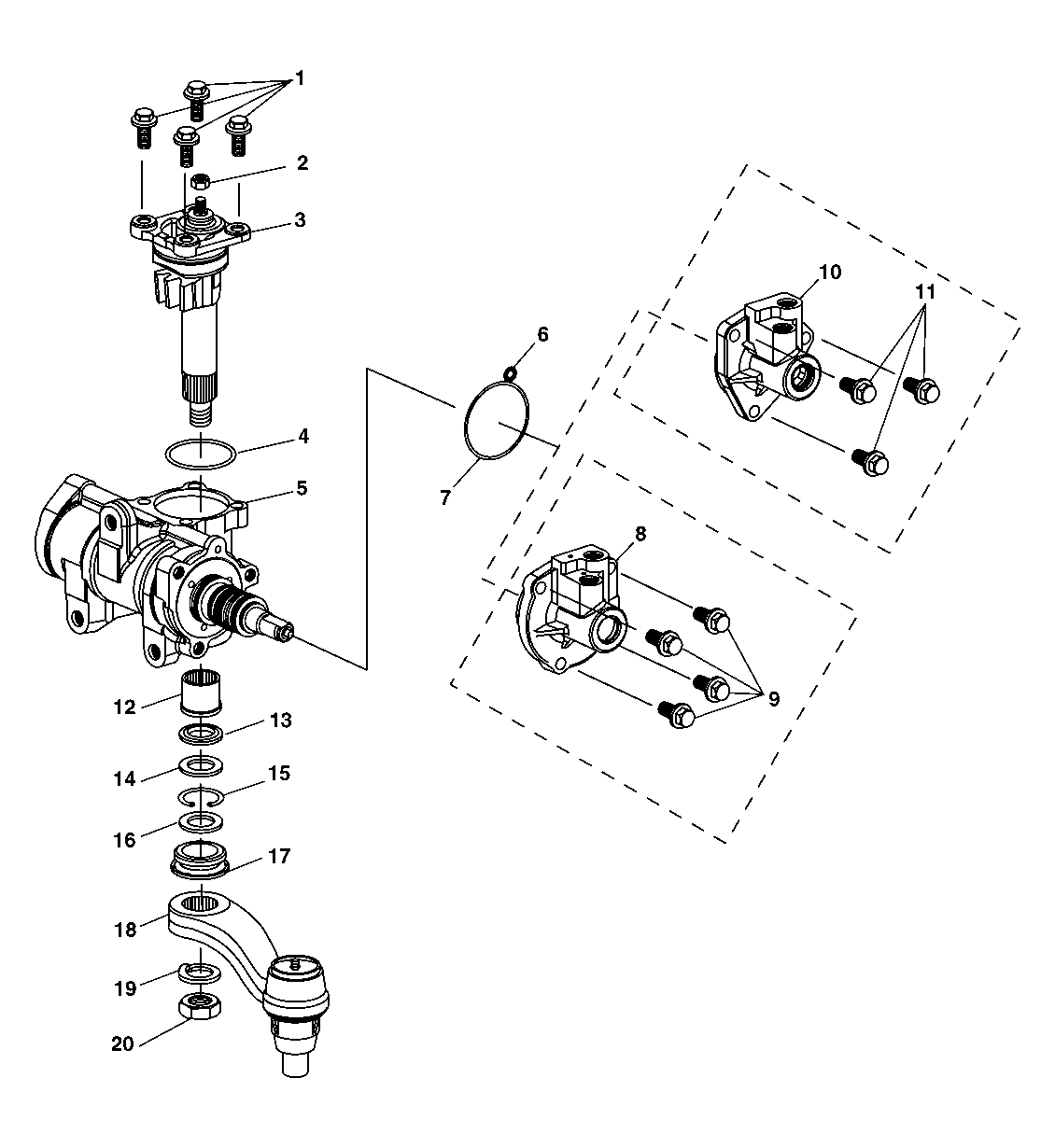

| Callout | Component Name |
|---|---|
| 1 | Hexagon Bolt |
| 2 | Lash Adjuster Nut |
| 3 | Pitman Shaft and Cover Assembly |
| 4 | O-Ring Seal |
| 5 | Steering Gear Housing Assembly |
| 6 | O-Ring Seal |
| 7 | O-ring Seal |
| 8 | Stub Shaft Housing (680 Gear) |
| 9 | Hexagon Bolt |
| 10 | Stub Shaft Housing (670 Gear) |
| 11 | Hexagon Bolt |
| 12 | Needle Bearing Assembly |
| 13 | Pitman Shaft Seal |
| 14 | Backup Washer |
| 15 | Retaining Ring |
| 16 | Dust Seal |
| 17 | Pitman Shaft Boot |
| 18 | Pitman Arm Assembly |
| 19 | Lock Washer |
| 20 | Pitman Arm Nut |
