STOPLAMP Switch: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

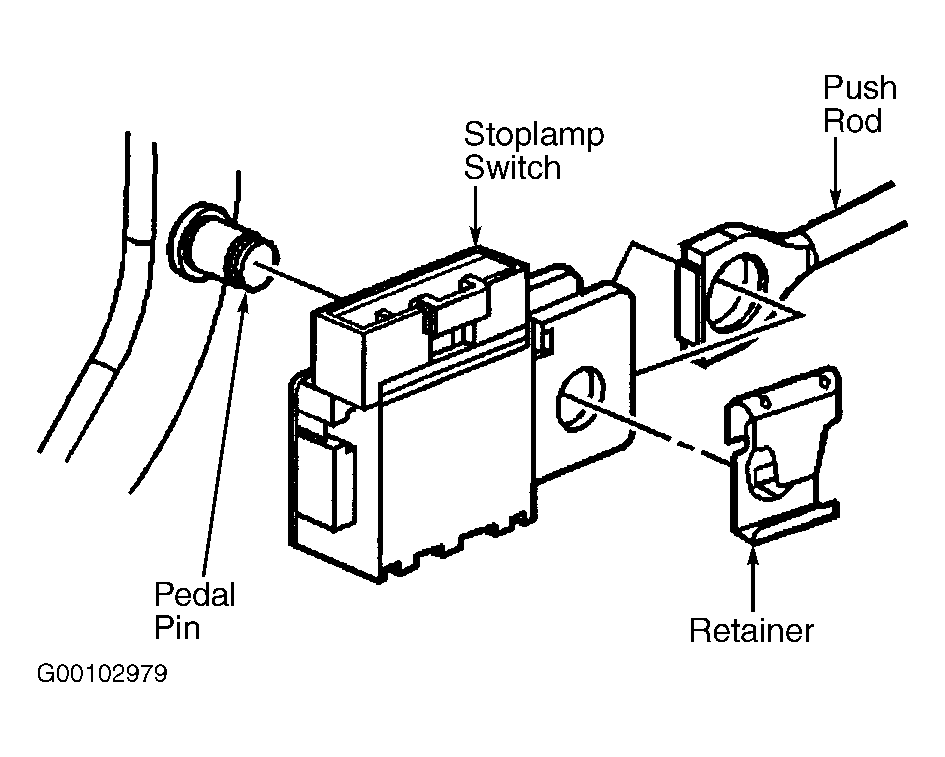

Remove the pushrod retainer from the brake pedal pin. Remove the stoplamp switch and the pushrod from the brake pedal pin. See Figure . Disconnect the electrical connector and remove the stoplamp switch.
