Floor Shift Knob: Removal
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

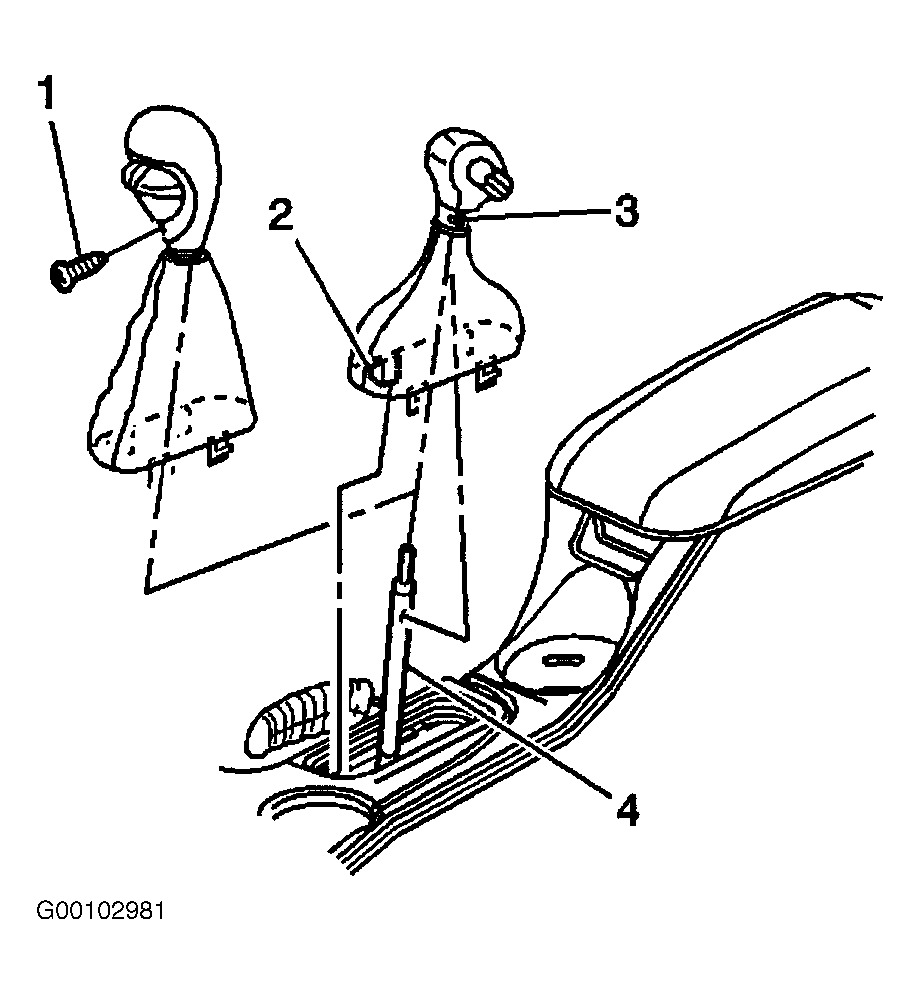

The floor shift control knob and boot are serviced as an assembly. Loosen the set screw (3) or (1) (Bravada only). See Figure . Push in at the base of the boot to release the locking tabs (2) from the console assembly. Pull up to remove the knob and boot assembly from the transmission control (4).
