Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the seat up.
  2. Remove the rear storage compartment bracket, If equipped. Refer to Tool Storage Compartment Bracket Replacement (PRO) in Interior Trim.
  3. Pull the seat belt buckles through the seat cushion and seat back.
  4. Remove the seat retaining bolts (1).
  5. Lift the rear seat from the retaining hooks.
  6. Remove the seat from the vehicle.

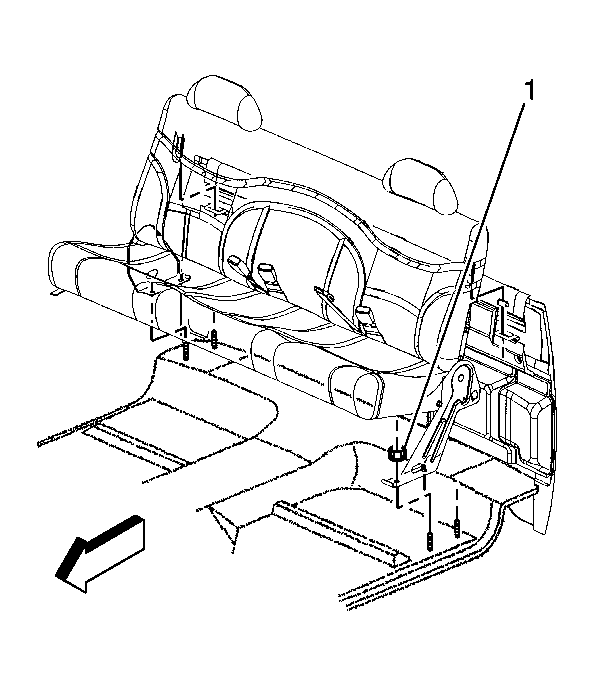

    7. Fig 1: Removing Rear Seat & Bolts (Extended Cab)
    GM363716Courtesy of GENERAL MOTORS CORP.
