Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter/generator stator.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the starter/generator stator stud.
Tighten: Tighten the stud to 16 N.m (12 lb ft).

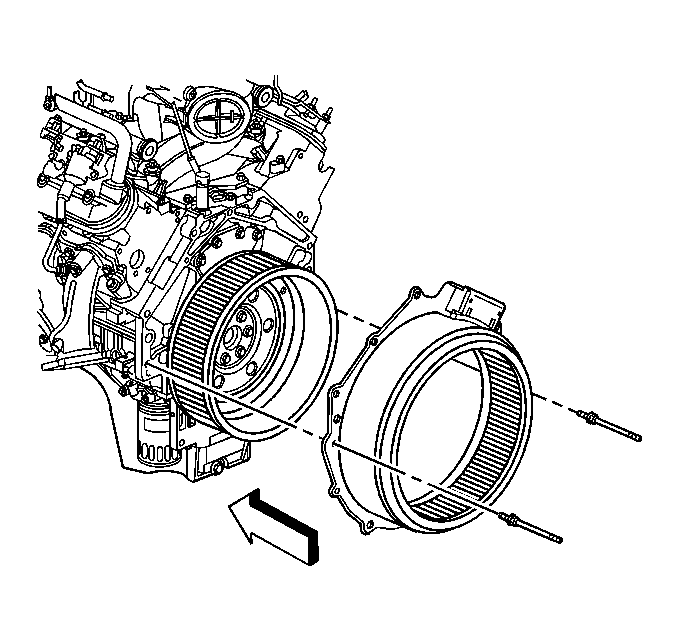

Fig 1: View Of Starter.Generator Stator & Studs (5.3L Engine w/RPO HP2)

Courtesy of GENERAL MOTORS CORP.

Install the transmission. Refer to Transmission Replacement (4.8L, 5.3L, and 6.0L Engines) or Transmission Replacement (5.3L Engine w/RPO HP2) in Automatic Transmission - 4L60-E/4L65-E.
