Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
  2. If necessary, remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the right fender wheelhouse inner panel. Refer to Wheelhouse Panel Replacement in Body Front End.
  4. Remove the engine wiring harness nut (4).
  5. Remove the engine wiring harness lead (1) from the starter.

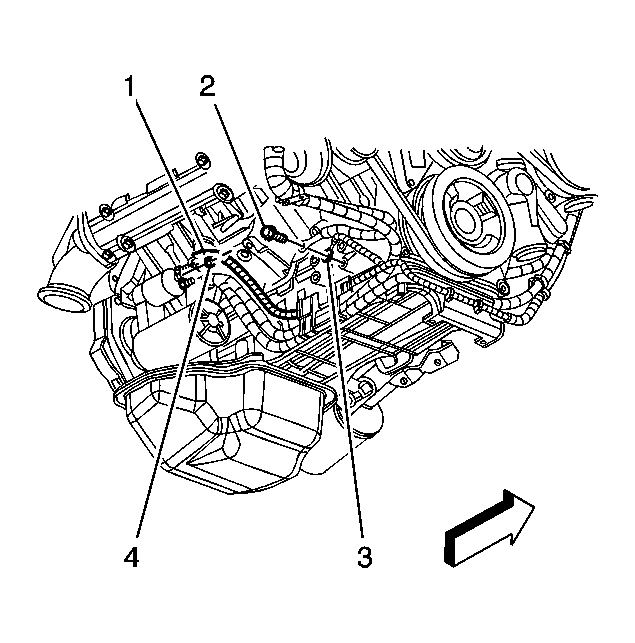

    6. Fig 1: View Of Engine Wiring Harness, Nut & Lead
    GM1369542Courtesy of GENERAL MOTORS CORP.
  6. Remove the positive battery cable nut (7).
  7. Remove the positive battery cable lead (8) from the starter.
    8. Fig 2: View Of Cables, Connector & Retainers - Lower Right Of Engine
    GM1369543Courtesy of GENERAL MOTORS CORP.
  8. Remove the starter motor bolts.
  9. Remove the starter motor.

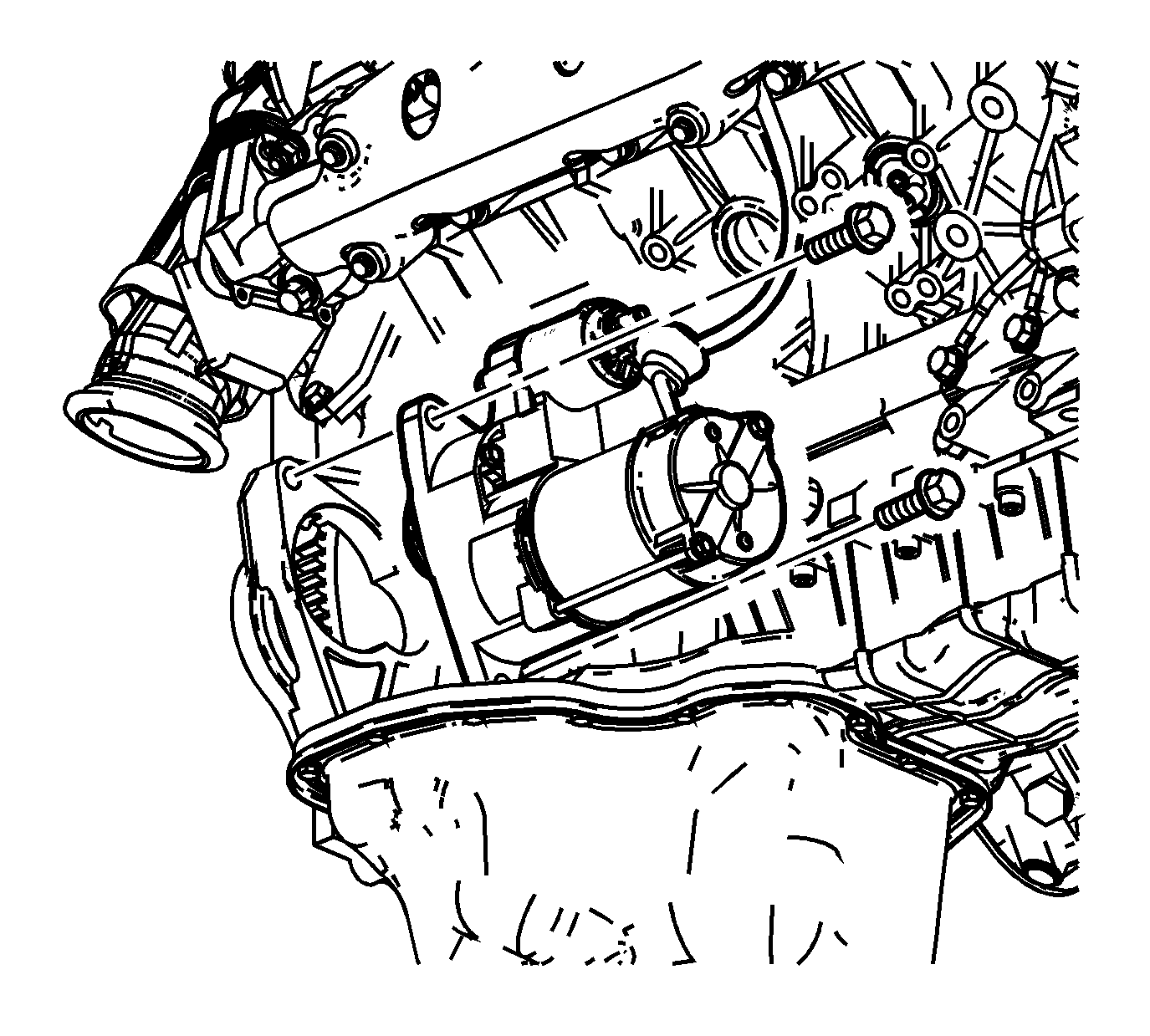

    10. Fig 3: View Of Starter (6.6L (LLY) Engine)
    GM1334814Courtesy of GENERAL MOTORS CORP.
