Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the auxiliary generator bracket.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the auxiliary generator bracket bolt.
Tighten: Tighten the bolt to 50 N.m (37 lb ft).

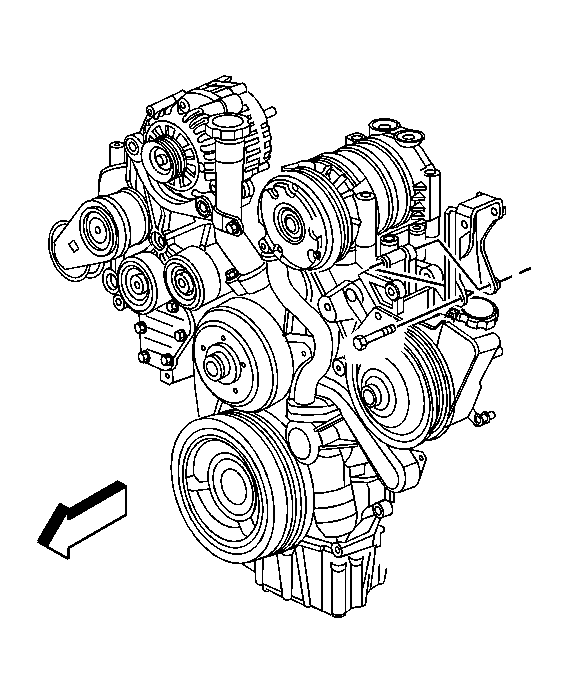

Fig 1: View Of Auxiliary Generator Bracket & Bolt (6.6L (LLY))

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary generator (4).
Install the auxiliary generator bolts (3).
Tighten: Tighten the bolt to 50 N.m (37 lb ft).

Fig 2: View Of Auxiliary Generator & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the positive cable to the auxiliary generator, perform the following:
1. Install the positive cable.
2. Install the positive cable nut (1).
  Tighten: Tighten the nut to 9 N.m (80 lb in).
3. Slide the boot (4) up to cover the terminal stud.

Fig 3: View Of Positive Cable At Auxiliary Generator (6.6L (LLY) Engine)

Courtesy of GENERAL MOTORS CORP.

Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 6.6L (LLY).
Connect the auxiliary generator electrical connector (3).

Fig 4: View Of A/C & Generator Electrical Connectors (6.6L (LLY) Engine)

Courtesy of GENERAL MOTORS CORP.

Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
