Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

If removed, install the auxiliary generator bracket.

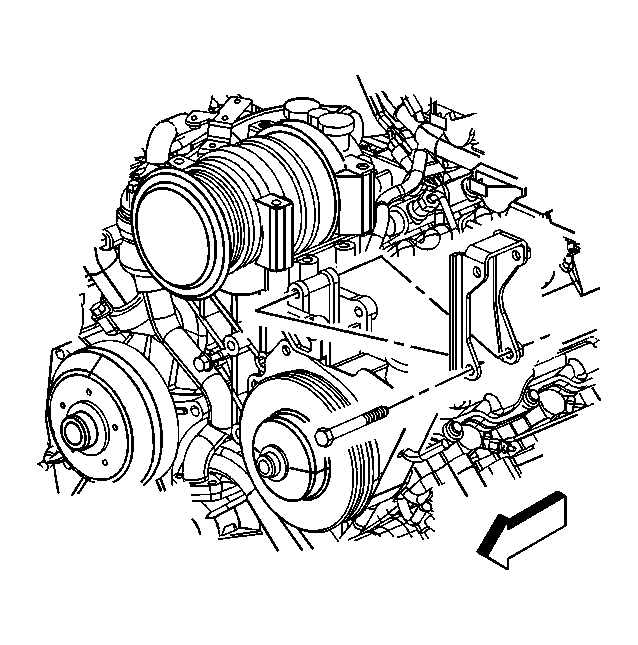

Fig 1: View Of Auxiliary Generator Bracket (6.6L (LB7))

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the auxiliary generator bracket bolt.
Tighten: Tighten the bolt to 50 N.m (37 lb ft).
Install the generator cable to the auxiliary generator, perform the following:
1. Install the generator cable.
2. Install the generator cable nut to the terminal stud.
  Tighten: Tighten the nut to 9 N.m (80 lb in).
3. Slide the boot over the terminal stud.

Fig 2: View Of Generator Cable & Nut

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary generator.
Install the auxiliary generator bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).

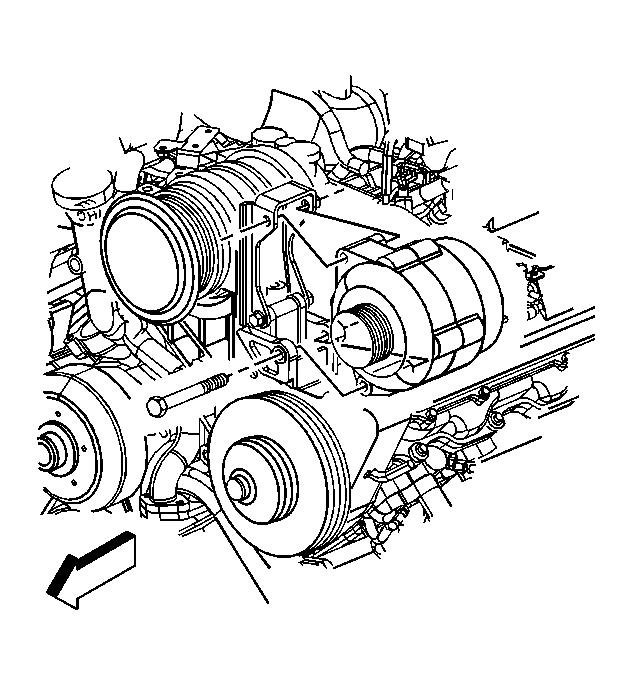

Fig 3: View Of Auxiliary Generator & Bolts (6.6L (LB7))

Courtesy of GENERAL MOTORS CORP.

Connect the auxiliary generator electrical connector (4).

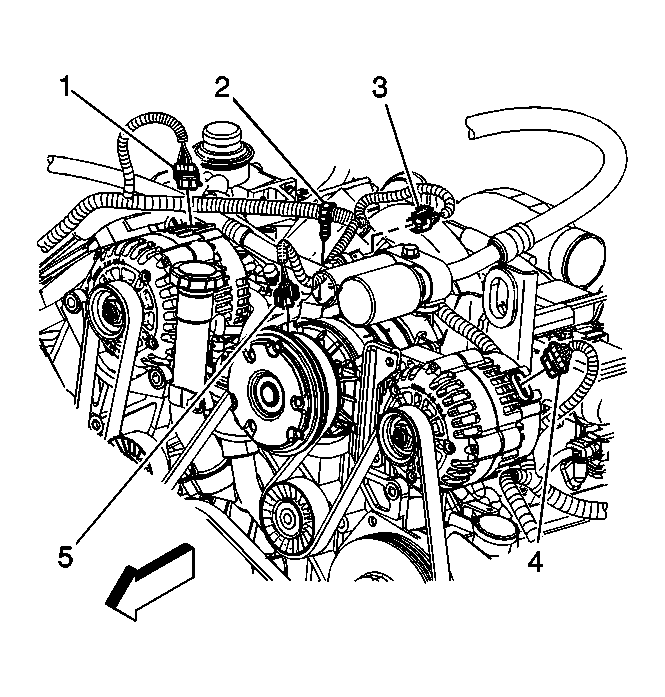

Fig 4: View of Generator Harness, Clip, A/C Refrigerant Switch, Dual Generator Harness Connector & A/C Compressor Clutch (6.6L (LB7) Engine)

Courtesy of GENERAL MOTORS CORP.

Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 6.6L.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
