Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. If necessary, install the idler pulleys.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  2. Install the generator mounting bracket.
  3. Install the generator mounting bracket bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    4. Fig 1: View Of Generator Mounting Bracket
    GM1334912Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt tensioner bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

    5. Fig 2: View Of Drive Belt Tensioner
    GM1334909Courtesy of GENERAL MOTORS CORP.
  5. Install the positive battery cable to the generator, perform the following:
    1. Install the positive cable.
    2. Install the positive cable nut (2).

      Tighten:  Tighten the nut to 9 N.m (80 lb in).

    3. Slide the boot (3) up to cover the terminal stud.
    6. Fig 3: View Of Generator Cable & Nut
    GM395686Courtesy of GENERAL MOTORS CORP.
  6. Connect the generator electrical connector (1).
    7. Fig 4: View Of A/C & Generator Electrical Connectors (6.6L (LLY) Engine)
    GM1369550Courtesy of GENERAL MOTORS CORP.
  7. Install the electrical harness clip bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

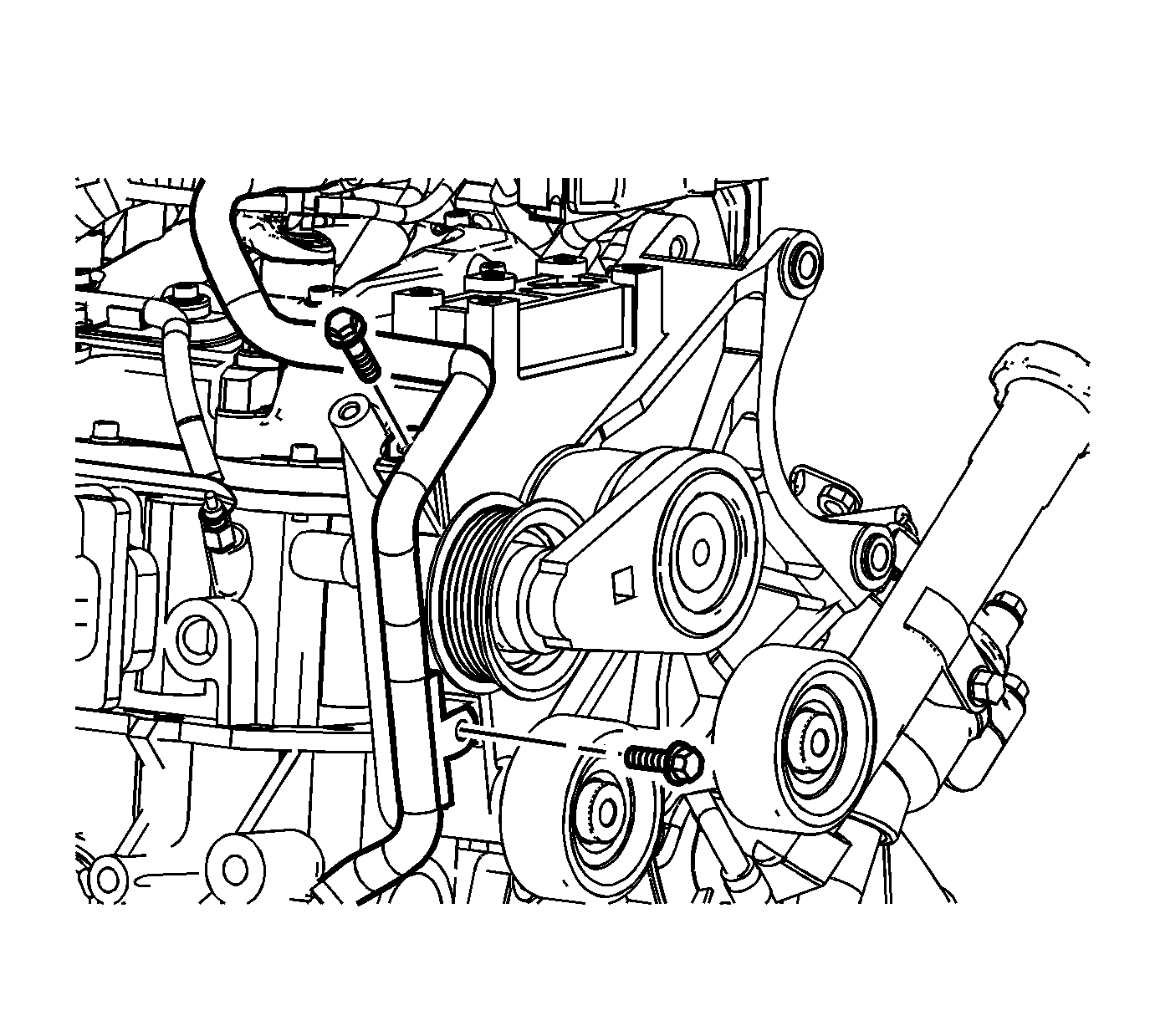

    8. Fig 5: View Of Electrical Harness Clip Bolts (6.6L (LLY) Engine)
    GM1334907Courtesy of GENERAL MOTORS CORP.
  8. Install the upper fan shroud. Refer to Fan Shroud Replacement - Upper (W/O M74) or Fan Shroud Replacement - Upper (W/M74) or Fan Shroud Replacement - Upper (W/HP2) in Engine Cooling.
  9. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 6.6L (LLY).
  10. Install the air cleaner. Refer to Air Cleaner Assembly Replacement in Engine Controls - 6.6L (LLY).
  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
