Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the energy storage box (ESB) intermediate cover. Refer to Energy Storage Box (ESB) Trim Cover Replacement (5.3L Engine w/RPO HP2) .
  2. Remove the maxi-fuse cover.
    3. Fig 1: View Of Maxi-Fuse Cover (5.3L Engine w/RPO HP2)
    GM1403619Courtesy of GENERAL MOTORS CORP.
  3. Remove the maxi-fuse nuts (1).
  4. Remove the maxi-fuse (2).

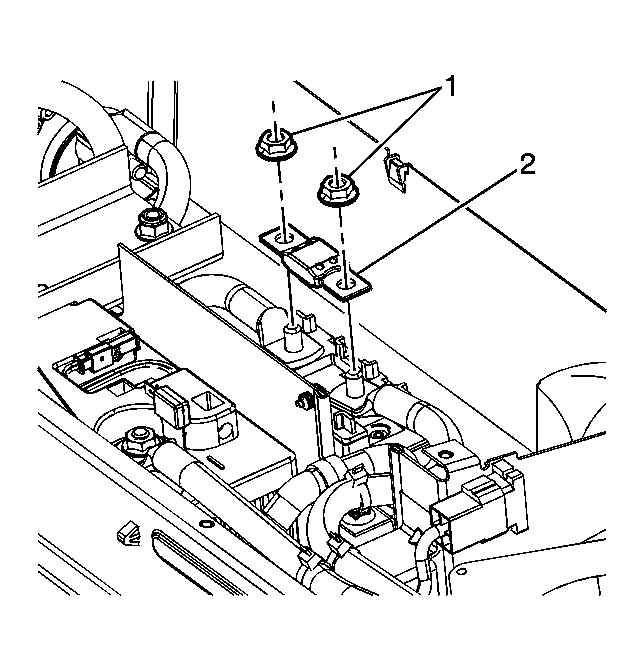

    5. Fig 2: View Of Maxi-Fuse & Nuts (5.3L Engine w/RPO HP2)
    GM1456037Courtesy of GENERAL MOTORS CORP.
