Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer toSIR Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
  2. Remove the steering column trim covers. Refer toSteering Column Trim Covers Replacement in Steering Wheel and Column.
  3. Remove the wire harness assembly (4) from the wire harness strap (5).

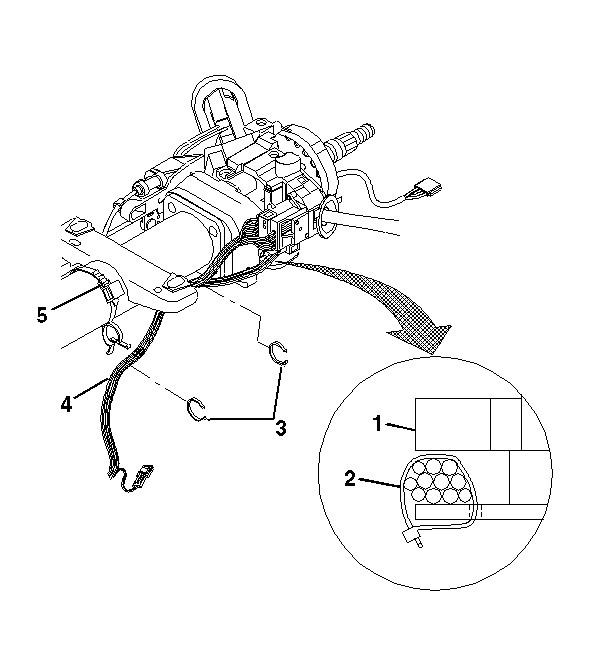

    Fig 1: View Of Steering Column Wiring Harness Assembly
    GM360577Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 wire harness straps (3) from the wire harness assembly.
  5. Remove the wire harness strap (2) from the upper tilt head assembly (1).
    6. Fig 2: Upper Steering Column Components
    GM361442Courtesy of GENERAL MOTORS CORP.
  6. Remove the retaining ring (1).
  7. Remove the SIR coil (2).
  8. Remove the wave washer (3) from the steering column upper shaft.
