Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When using the J 43276 Clutch Pilot Bearing Remover, always secure the J 43276-1 Clutch Pilot Bearing Remover tool body using a wrench. Do not allow the J 43276-1 tool body to rotate. Failing to do so causes damage to the J 43276-1 tool body.

IMPORTANT: The flywheel spacer (if applicable) must be removed prior to clutch pilot bearing removal.

Remove the clutch assembly. Refer to Clutch Assembly Replacement .
Using J 43276 perform the following in order to remove the clutch pilot bearing:

Fig 1: Removing The Clutch Pilot Bearing
Courtesy of GENERAL MOTORS CORP.
1. Install the J 43276-1 into the clutch pilot bearing.
2. Using a wrench, secure the J 43276-1.
3. Insert the J 43276-2 into the J 43276-1.
4. Rotate the J 43276-2 clockwise into the J 43276-1 until the clutch pilot bearing is completely removed from the crankshaft.
5. Rotate the J 43276-2 counterclockwise to remove the J 43276-2 from the J 43276-1.
6. Remove the J 43276-1 from the tool body.

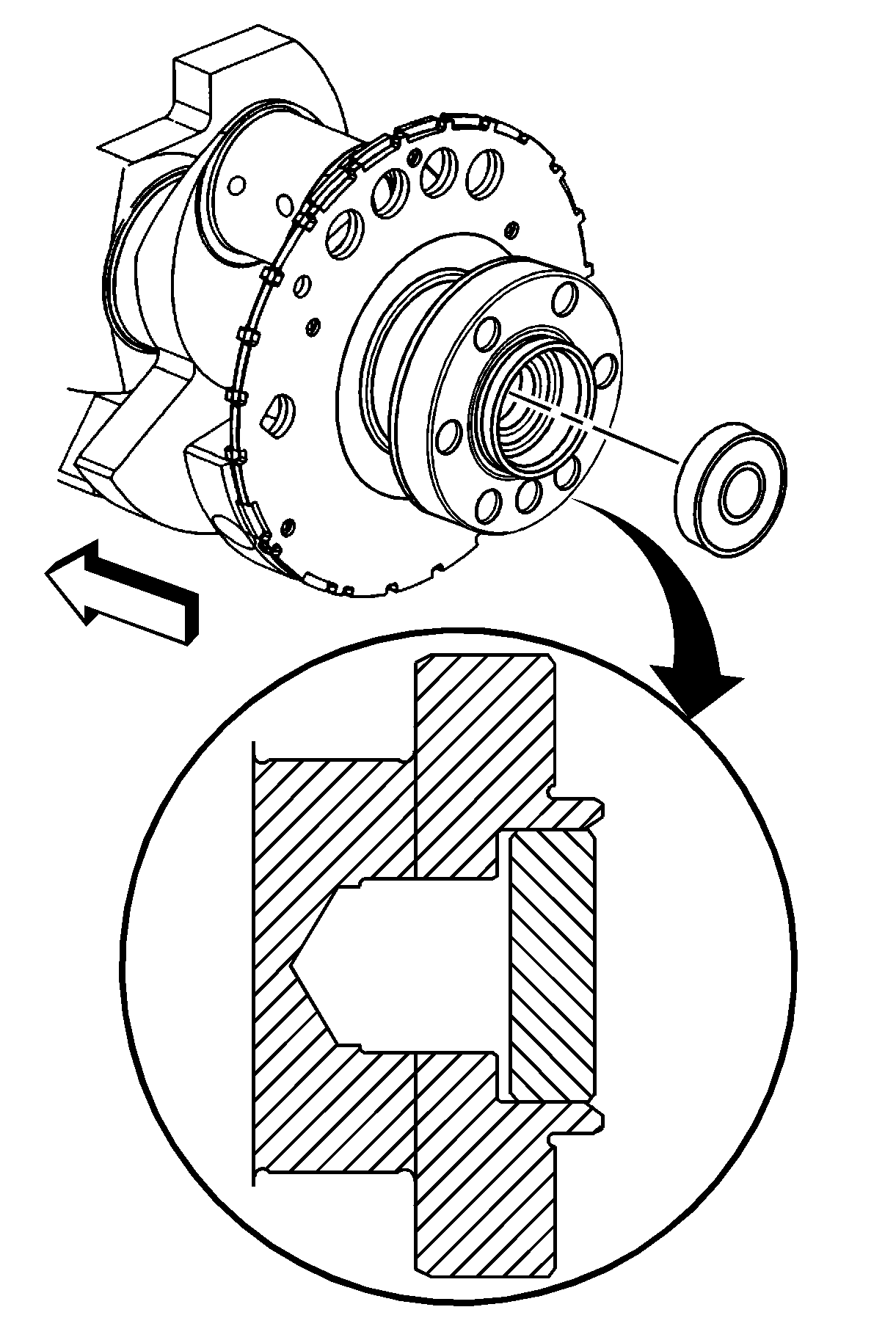

Fig 2: Clutch Pilot Bearing

Courtesy of GENERAL MOTORS CORP.

Discard the old clutch pilot bearing.
