Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to:
  2. Mark the flywheel and a lug on the clutch pressure plate for alignment purposes on installation.
  3. If equipped with a 4.3L engine, remove the clutch pressure plate bolts (3), and washers (2).
    Fig 1: Clutch Pressure Plate And Disc Assembly
    GM400324Courtesy of GENERAL MOTORS CORP.
  4. Remove the clutch pressure plate (4) and disc (1).

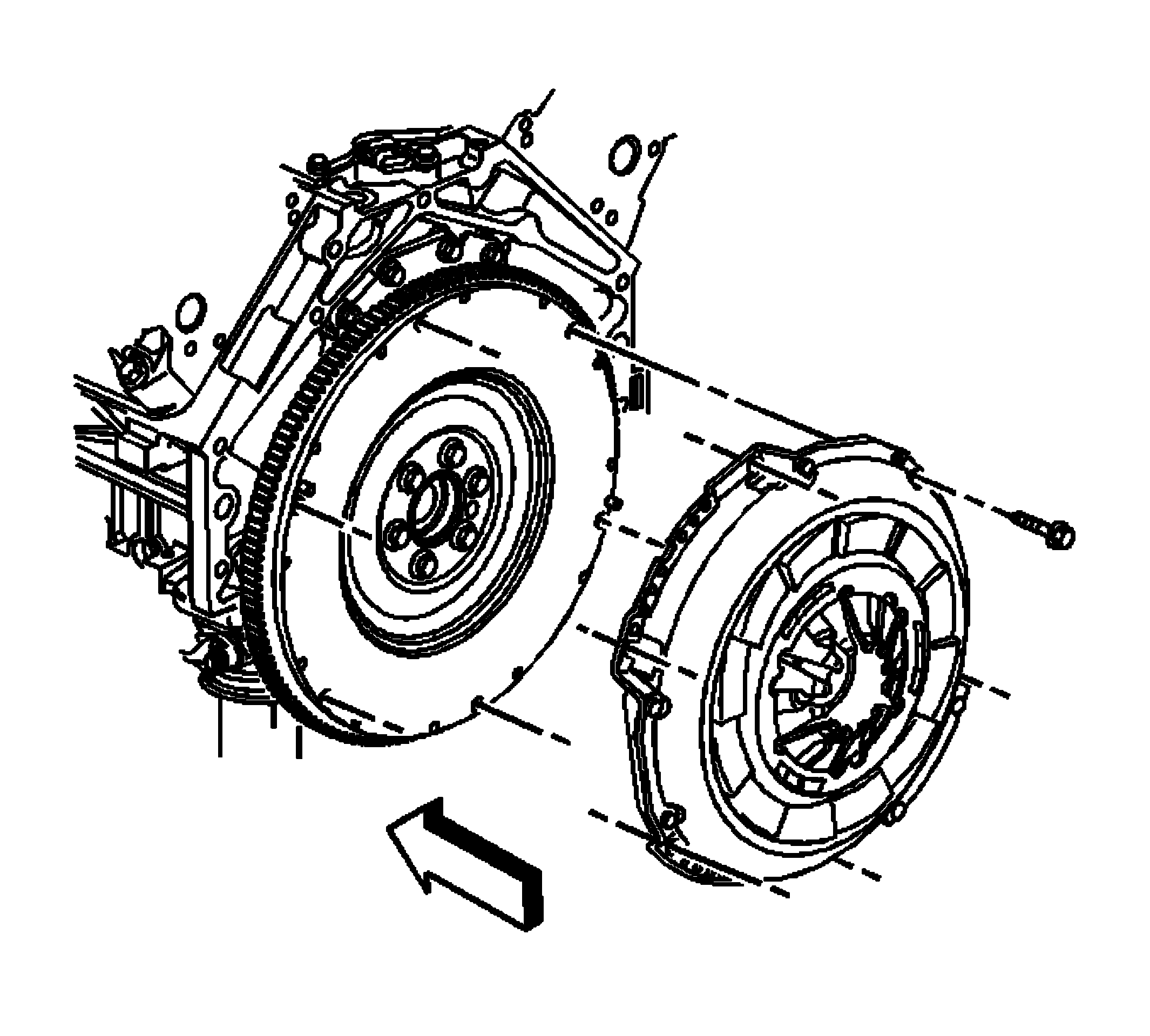

    5. Fig 2: Clutch Pressure Plate And Driven Plate (4.8L Or 6.0L)
    GM777468Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Dowel pins are used to align the flywheel and pressure plate. When removing the pressure plate check to see if the dowel pins are rusted into the pressure plate, if so remove, clean, and reinstall the dowel pins into the correct location(s) on the flywheel.
  5. If equipped with a 4.8L or 6.0L engine, remove the clutch pressure plate bolts.
  6. Remove the clutch pressure plate and disc from the dowel pins.
    7. Fig 3: Clutch Assembly (6.6L or 8.1L)
    GM777472Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Dowel pins are used to align the flywheel and pressure plate. When removing the pressure plate check to see if the dowel pins are rusted into the pressure plate, if so remove, clean, and reinstall the dowel pins into the correct location(s) on the flywheel.
  7. If equipped with a 6.6L or 8.1L engine, remove the clutch pressure plate bolts.
  8. Remove the clutch pressure plate and disc from the dowel pins.
  9. If equipped with a NVG 4500 or a ZF S6-650 transmission, and ONLY the clutch disc is to be replaced, the pressure plate and NEW disc must be "reset" back to the "unworn" position. Refer to Clutch Pressure Plate Adjustment (Off-Vehicle (6.0L, 6.6L, 8.1L Only)) .
