Fuel Hose/Pipes Routing Diagram

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

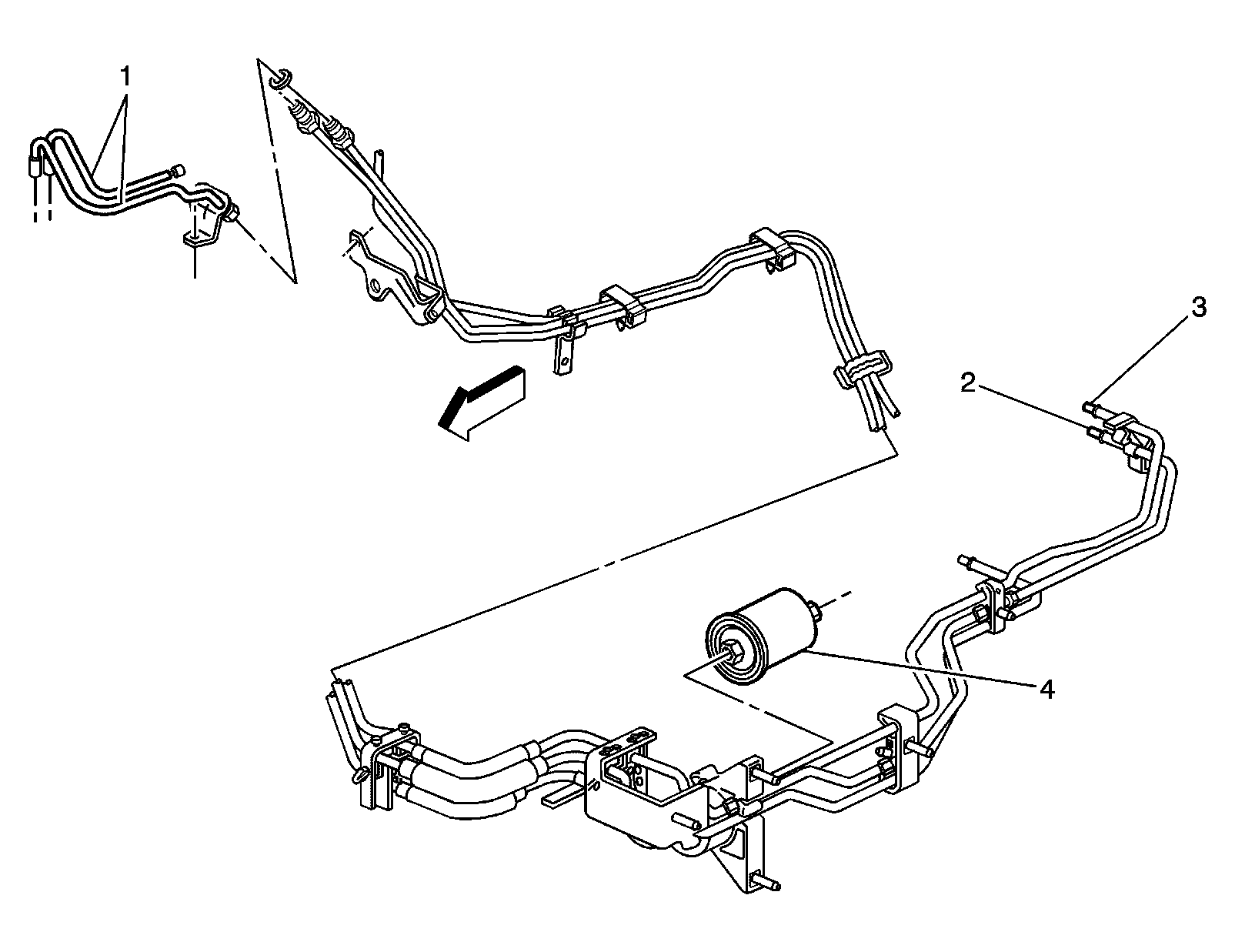

Fig 1: Fuel Hose/Pipes Routing Diagram
GM870402Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Compartment Fuel Pipes
2 Fuel Return Pipe
3 Fuel Feed Pipe
4 Fuel Filter
