Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the EVAP canister to the bracket.
  2. Install the EVAP pipe to the EVAP canister, and retaining clip.
  3. Install the EVAP canister.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the EVAP canister bracket bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

    5. Fig 1: View Of EVAP Canister
    GM878131Courtesy of GENERAL MOTORS CORP.
  5. Connect the EVAP vent valve pipe to the EVAP canister.
    6. Fig 2: EVAP Vent Valve Pipe At EVAP Canister
    GM878143Courtesy of GENERAL MOTORS CORP.
  6. Connect the fuel tank EVAP pipe to the EVAP canister.

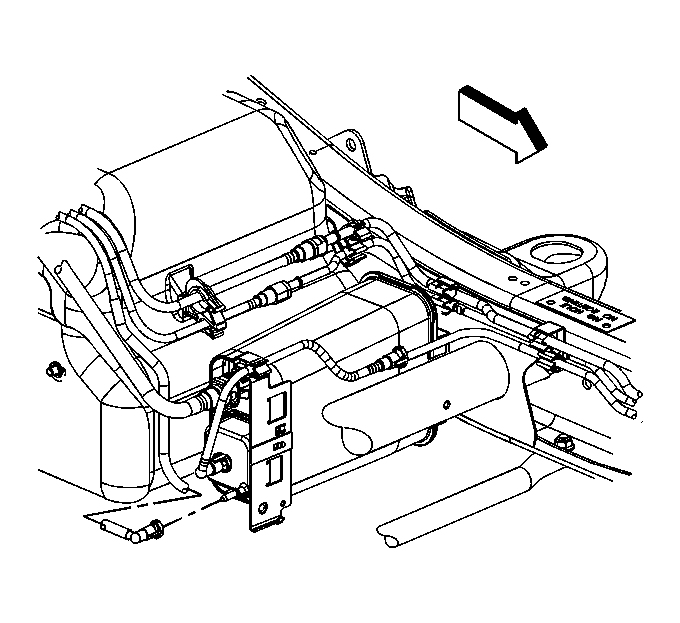

    7. Fig 3: View Of Fuel Tank EVAP Pipe At EVAP Canister
    GM878140Courtesy of GENERAL MOTORS CORP.
  7. Connect the EVAP purge pipe to the chassis EVAP purge pipe.
    8. Fig 4: View Of EVAP Hoses/Pipes (Chassis/Canister)
    GM878134Courtesy of GENERAL MOTORS CORP.
  8. Lower the vehicle.
