Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Turbocharger Vane Control Solenoid Valve & Electrical Connector
    GM1335540Courtesy of GENERAL MOTORS CORP.
  1. Install the turbocharger vane control solenoid valve to the turbocharger.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the vane control solenoid valve bracket and bolt.

    Tighten:  Tighten the bolt to 23 N.m (17 lb ft).

  3. Connect the turbocharger vane control solenoid valve electrical connector.

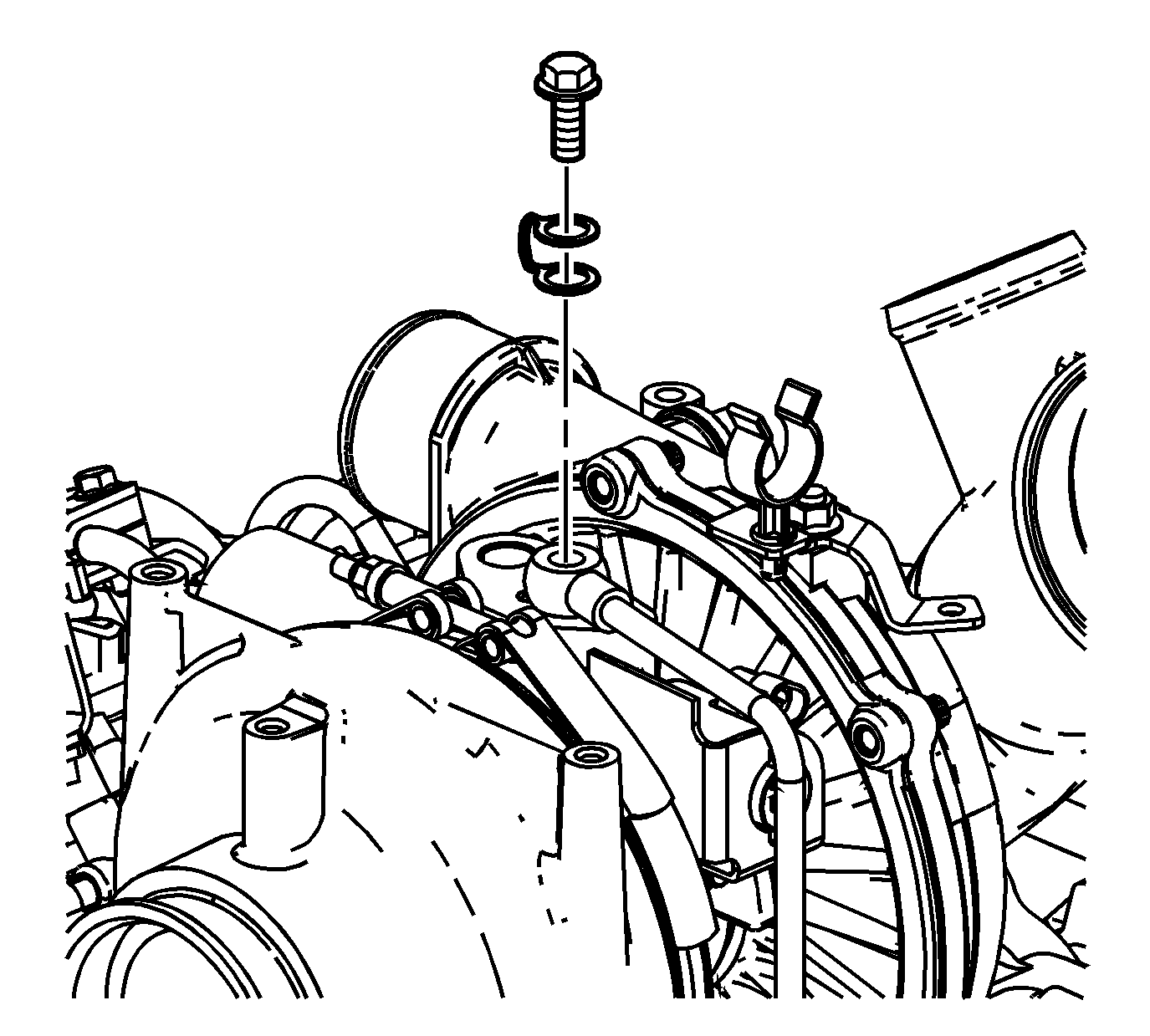

    4. Fig 2: View Of Turbocharger Oil Feed Pipe Banjo Bolt
    GM1335577Courtesy of GENERAL MOTORS CORP.
  4. Position the oil feed pipe to the turbocharger.
  5. Install a NEW turbocharger oil feed pipe washer and the banjo bolt.

    Tighten:  Tighten the bolt to 34 N.m (25 lb ft).

  6. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement in Engine Mechanical - 6.6L (LLY).
  7. Perform the turbocharger learn procedure. Refer to Turbocharger Learn Procedure .
