Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

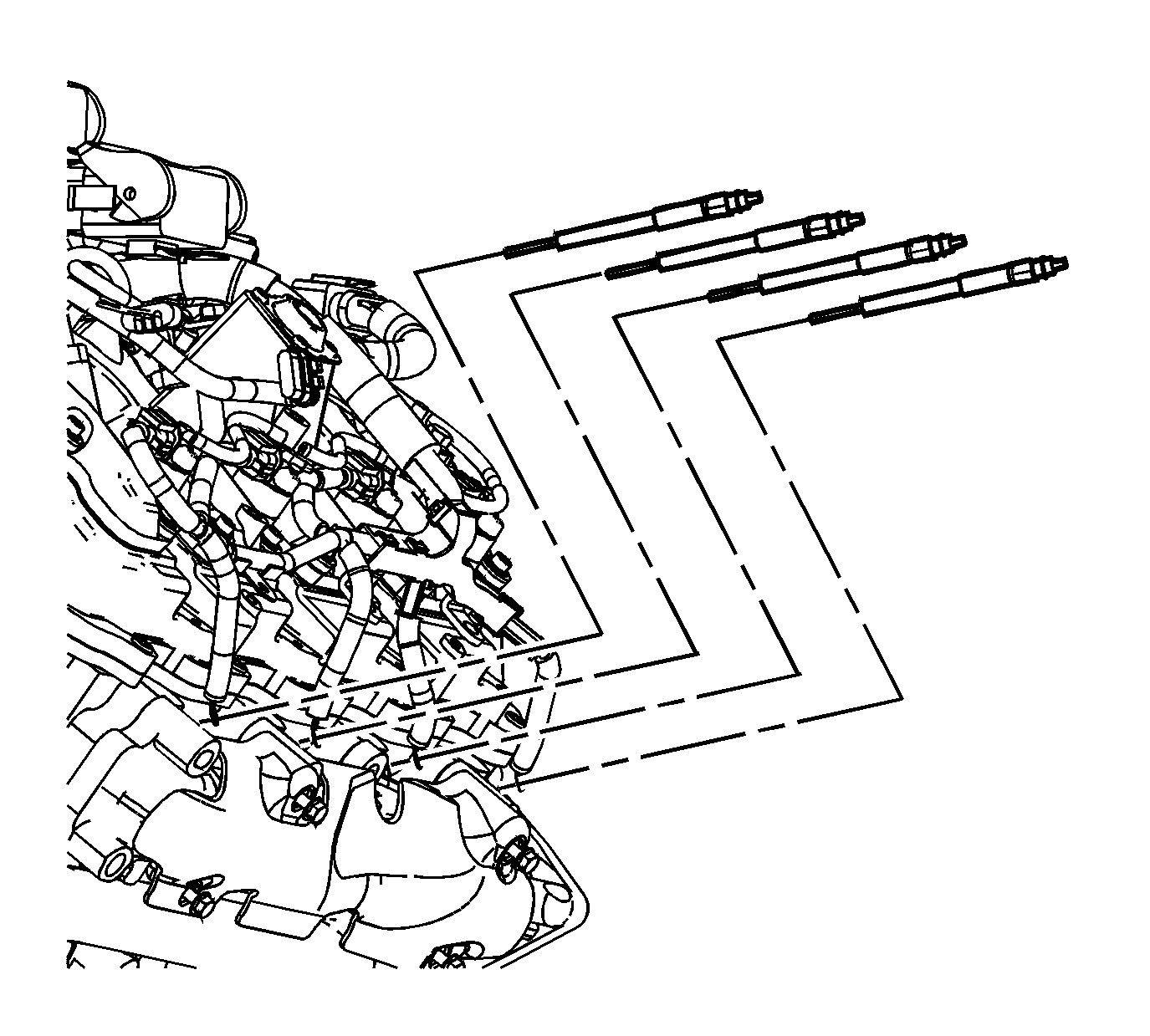

    Fig 1: View Of Left Glow Plugs
    GM1335554Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) in Engine Electrical.
  2. Remove the left wheelhouse panel. Refer to Wheelhouse Panel Replacement in Body Front End.
  3. Remove the glow plug harness nut(s).
  4. Remove the harness from the glow plug(s).
  5. Remove the glow plug(s).
