Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

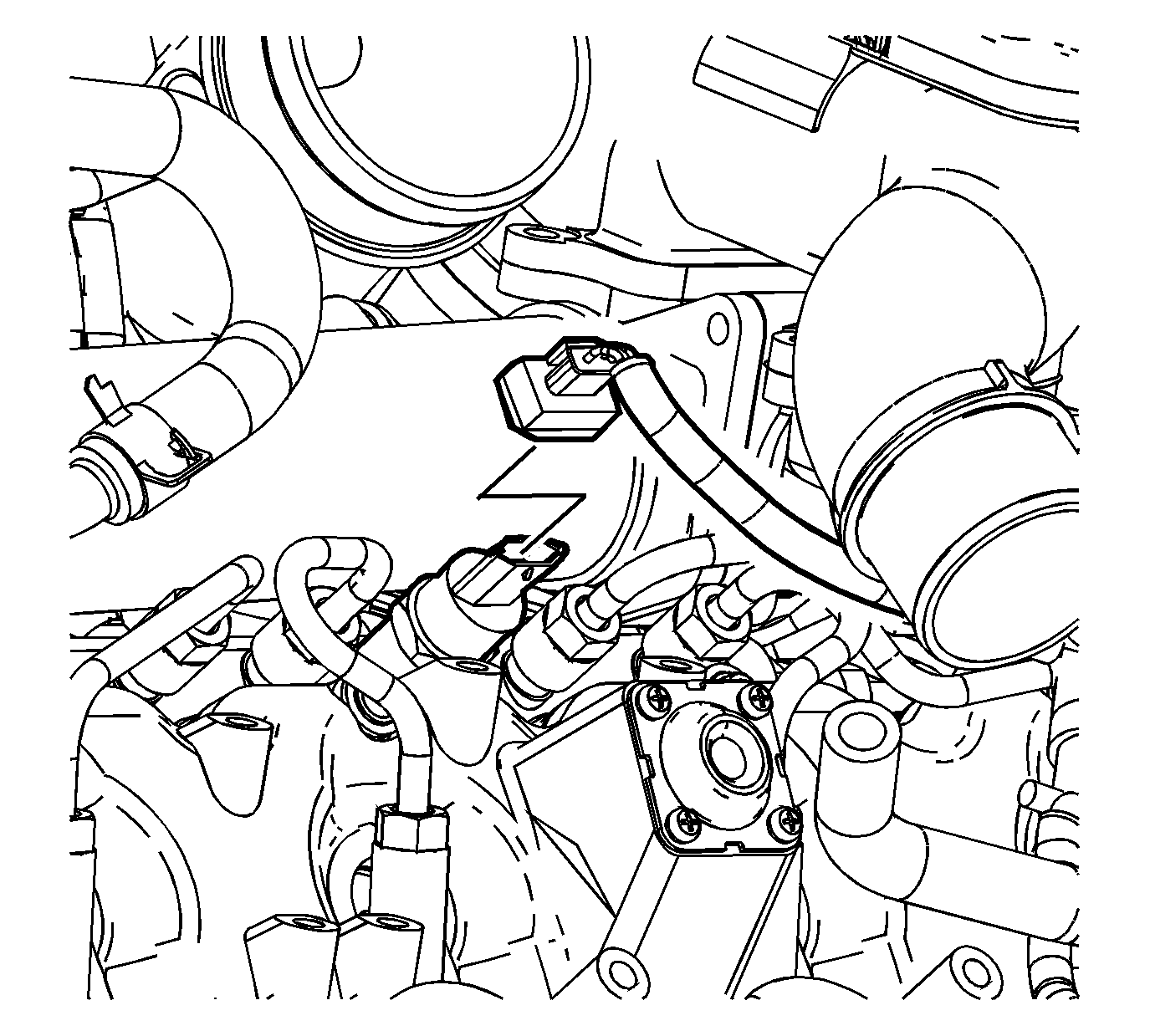

    Fig 1: View Of Fuel Rail Pressure Sensor And Electrical Connector
    GM1335543Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Remove the exhaust gas recirculation (EGR) cooler tube. Refer to Exhaust Gas Recirculation (EGR) Valve Cooler Tube Replacement .
  3. Disconnect the fuel rail pressure sensor electrical connector.
    4. Fig 2: Locating Fuel Pressure Sensor
    GM1379579Courtesy of GENERAL MOTORS CORP.
  4. Prior to removal, clean the fuel pressure sensor and surrounding area thoroughly with solvent, such as GM P/N 12377981 (Canadian P/N 10953463) or equivalent.
  5. Using compressed air, thoroughly blow dry the sensor and surrounding area.
  6. Remove the fuel pressure sensor (1).
