Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the outlet duct clamps at the turbocharger and the mass air flow (MAF)/intake air temperature (IAT) sensor.

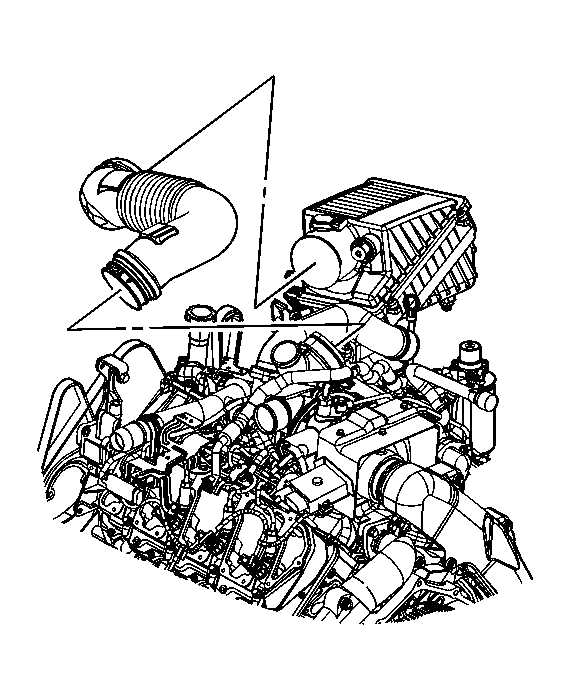

    Fig 1: View Of Air Cleaner Outlet Duct
    GM1480491Courtesy of GENERAL MOTORS CORP.
  2. Remove the air cleaner outlet duct.
