Water-in-Fuel Draining Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach a small piece of hose to the drain cock onto the water-in-fuel sensor.
  2. Place an approved fuel-resistant container under the fuel filter.
  3. Open the drain cock three or four turns or until the water contaminated fuel seeps from the drain cock.

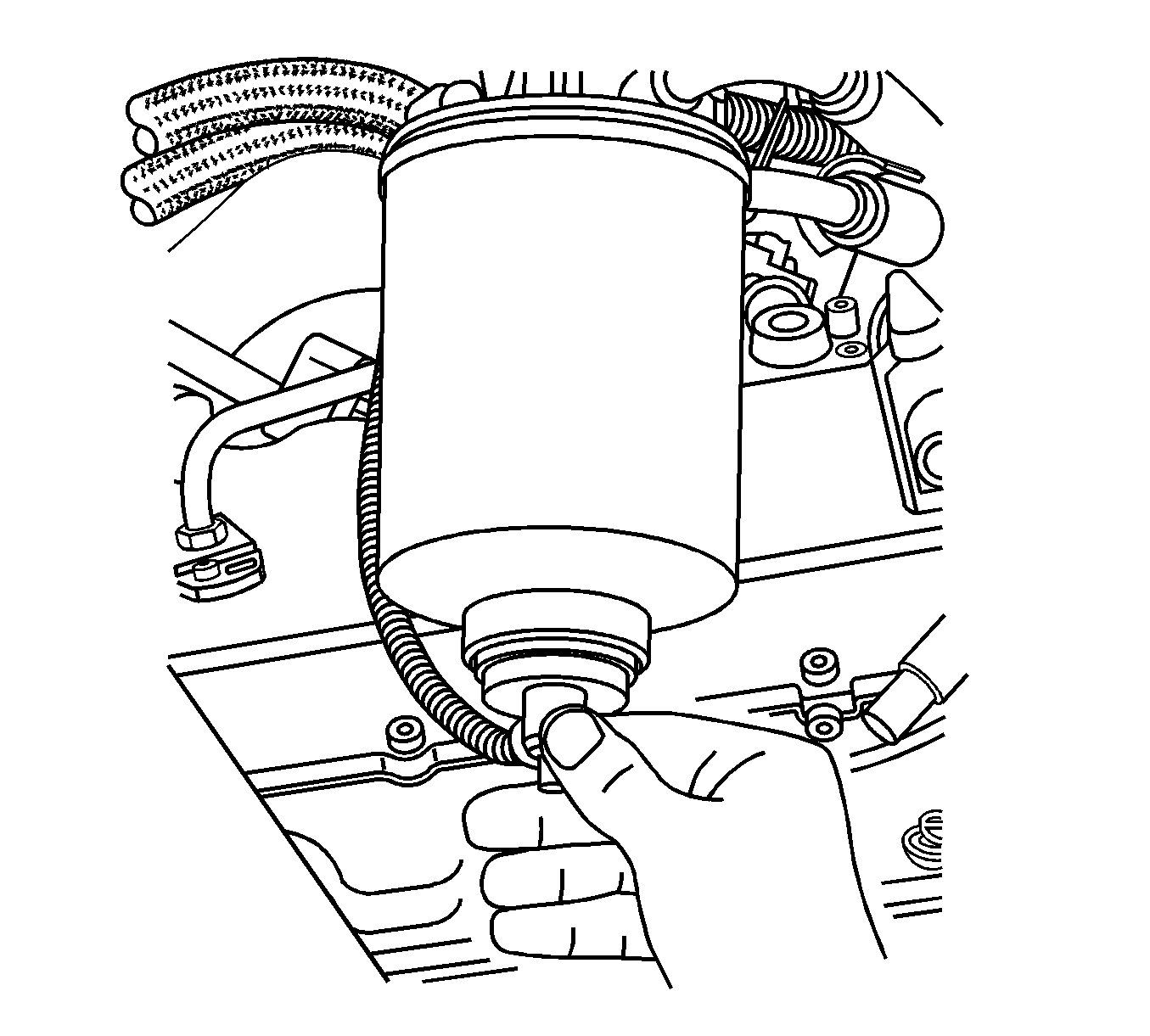

    4. Fig 1: Water-In-Fuel Drain Cock
    GM1198929Courtesy of GENERAL MOTORS CORP.
  4. Operate the priming pump until only diesel fuel is visible. Allow the pump to return upwards between pushes.
    5. Fig 2: Operating Priming Pump
    GM1198930Courtesy of GENERAL MOTORS CORP.
  5. Tighten the drain cock.
  6. Remove the container and hose.
