Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right exhaust pipe. Refer to Exhaust Pipe Replacement - Right (6.6L (LB7) Engine) or Exhaust Pipe Replacement - Right (6.6L (LLY) Engine) in Engine Exhaust.
  2. Remove the exhaust gas recirculation (EGR) valve cooler tube to bracket (2) bolts.

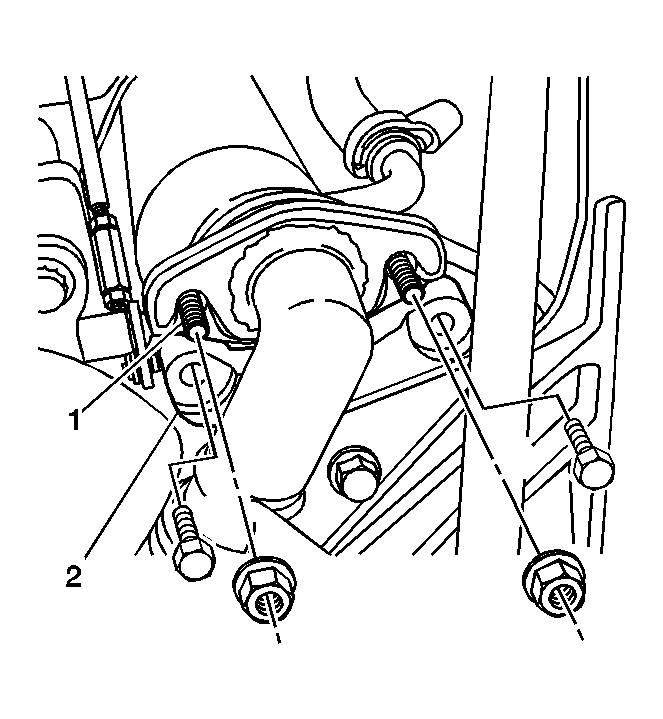

    3. Fig 1: EGR Bracket Bolts & Nuts
    GM784226Courtesy of GENERAL MOTORS CORP.
  3. Remove the EGR bracket to cylinder head bolts (1).
    4. Fig 2: EGR Bracket To Cylinder Head Bolts
    GM784232Courtesy of GENERAL MOTORS CORP.
  4. Remove the bracket.
