Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the BARO sensor (3) to the bracket.
  2. Bend the tabs (2) inward to hold the sensor.

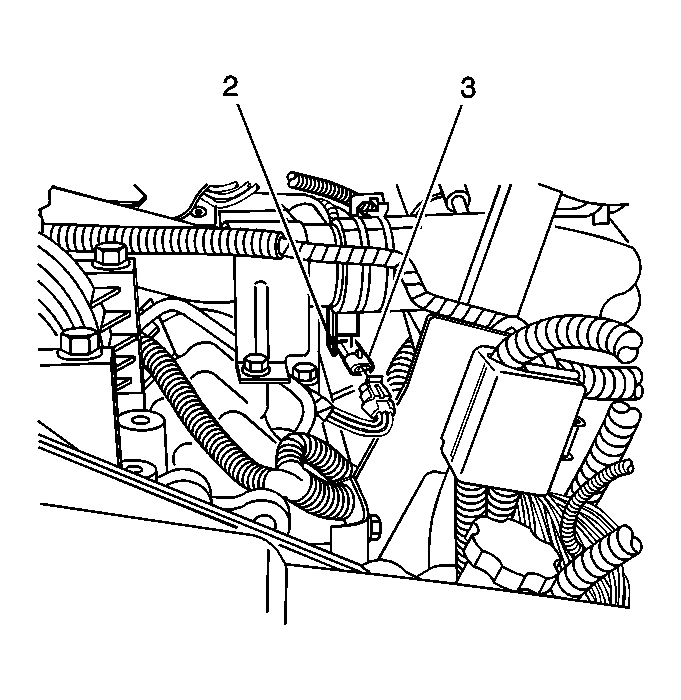

    3. Fig 1: BARO Sensor & Tabs
    GM739508Courtesy of GENERAL MOTORS CORP.
  3. Connect the BARO sensor electrical connector (1).
    4. Fig 2: BARO Sensor Electrical Connector
    GM739503Courtesy of GENERAL MOTORS CORP.
