Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the outlet duct clamp at the upper intake manifold cover.
  2. Remove the upper intake manifold cover from the outlet duct.
  3. Remove the upper intake manifold cover.
    4. Fig 1: View Of Upper Intake Manifold Cover, Outlet Duct & Clamp
    GM813243Courtesy of GENERAL MOTORS CORP.
  4. Loosen the outlet duct clamps at the turbocharger and the mass air flow/intake air temperature (MAF/IAT) sensor.
  5. Remove the outlet duct from the turbocharger and MAT/IAT sensor.

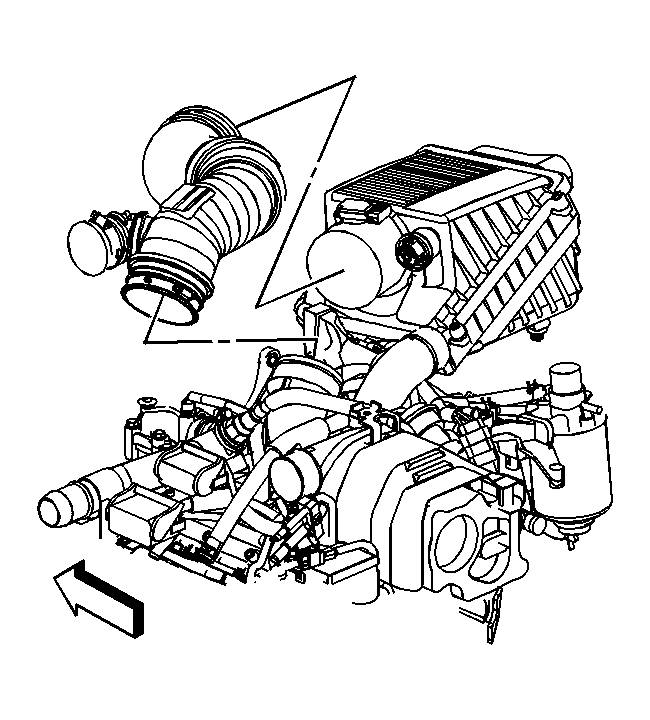

    6. Fig 2: View Of Outlet Duct
    GM813244Courtesy of GENERAL MOTORS CORP.
