Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.
  1. Remove the connector position assurance (CPA) retainer.
  2. Disconnect the accelerator pedal position (APP) sensor electrical connector.
    3. Fig 1: View Of Accelerator Pedal Position Sensor Electrical Connector
    GM858238Courtesy of GENERAL MOTORS CORP.
  3. Reposition the carpet to access the lower nut.
  4. Remove the accelerator pedal nuts.
  5. Remove the accelerator pedal assembly.

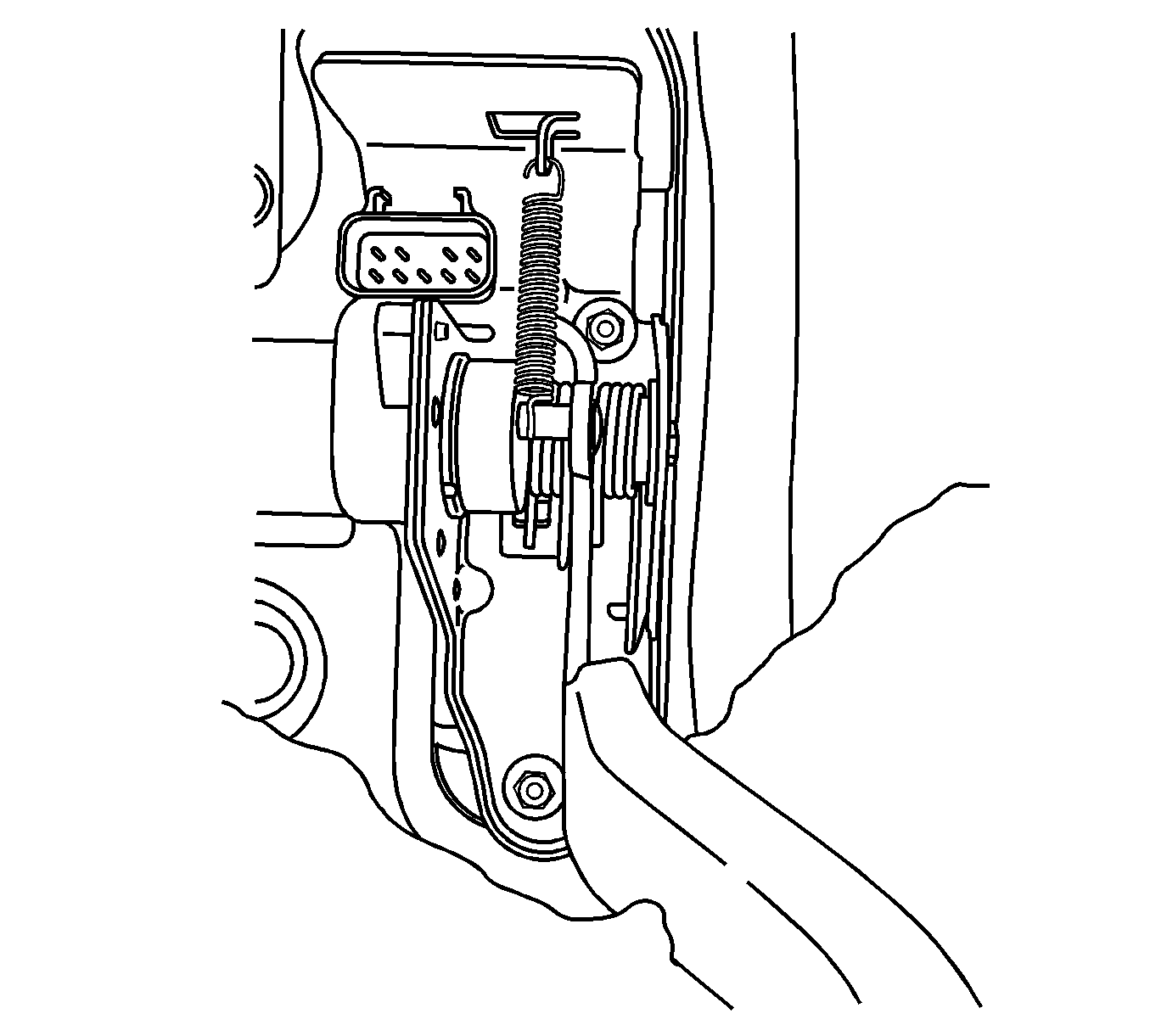

    6. Fig 2: Accelerator Pedal Assembly
    GM871926Courtesy of GENERAL MOTORS CORP.
