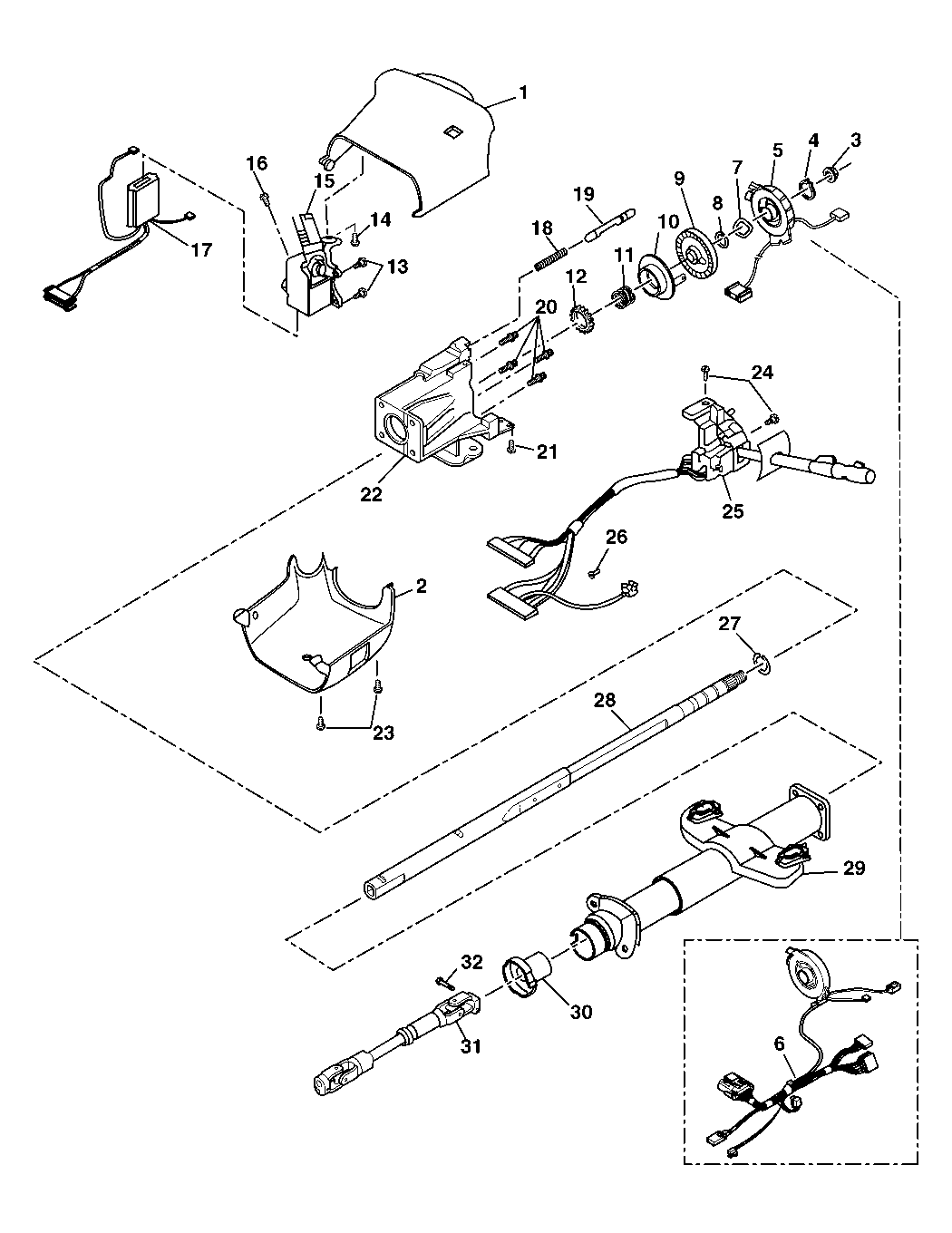

Steering Column Disassembled View (Floor Shift Standard)
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Upper Trim Cover |
| 2 | Lower Trim Cover |
| 3 | Flanged Prevailing Torque Nut |
| 4 | Retaining Ring |
| 5 | SIR Coil |
| 6 | SIR Coil and Harness Assembly |
| 7 | Wave Washer |
| 8 | Bearing Retainer |
| 9 | Shaft Lock |
| 10 | Turn Signal Cancel Cam |
| 11 | Upper Bearing Spring |
| 12 | Thrust Washer |
| 13 | Pan Head Tapping Screws |
| 14 | TORX® Head Screw |
| 15 | Ignition Lock Cylinder Case |
| 16 | Pan Head Tapping Screw |
| 17 | Ignition Switch Assembly |
| 18 | Lock Bolt Spring |
| 19 | Lock Bolt |
| 20 | TORX® Head Screws |
| 21 | Pan Head Tapping Screw |
| 22 | Steering Column Housing Assembly |
| 23 | Pan Head Tapping Screws |
| 24 | Pan Head Tapping Screws |
| 25 | Turn Signal Multifunction Switch Assembly |
| 26 | Axial Position Assurance Connector |
| 27 | Bearing Retainer |
| 28 | Steering Shaft Assembly |
| 29 | Steering Column Jacket Assembly |
| 30 | Adapter and Bearing Assembly |
| 31 | Intermediate Steering Shaft Assembly |
| 32 | Bolt and Retainer Assembly |
