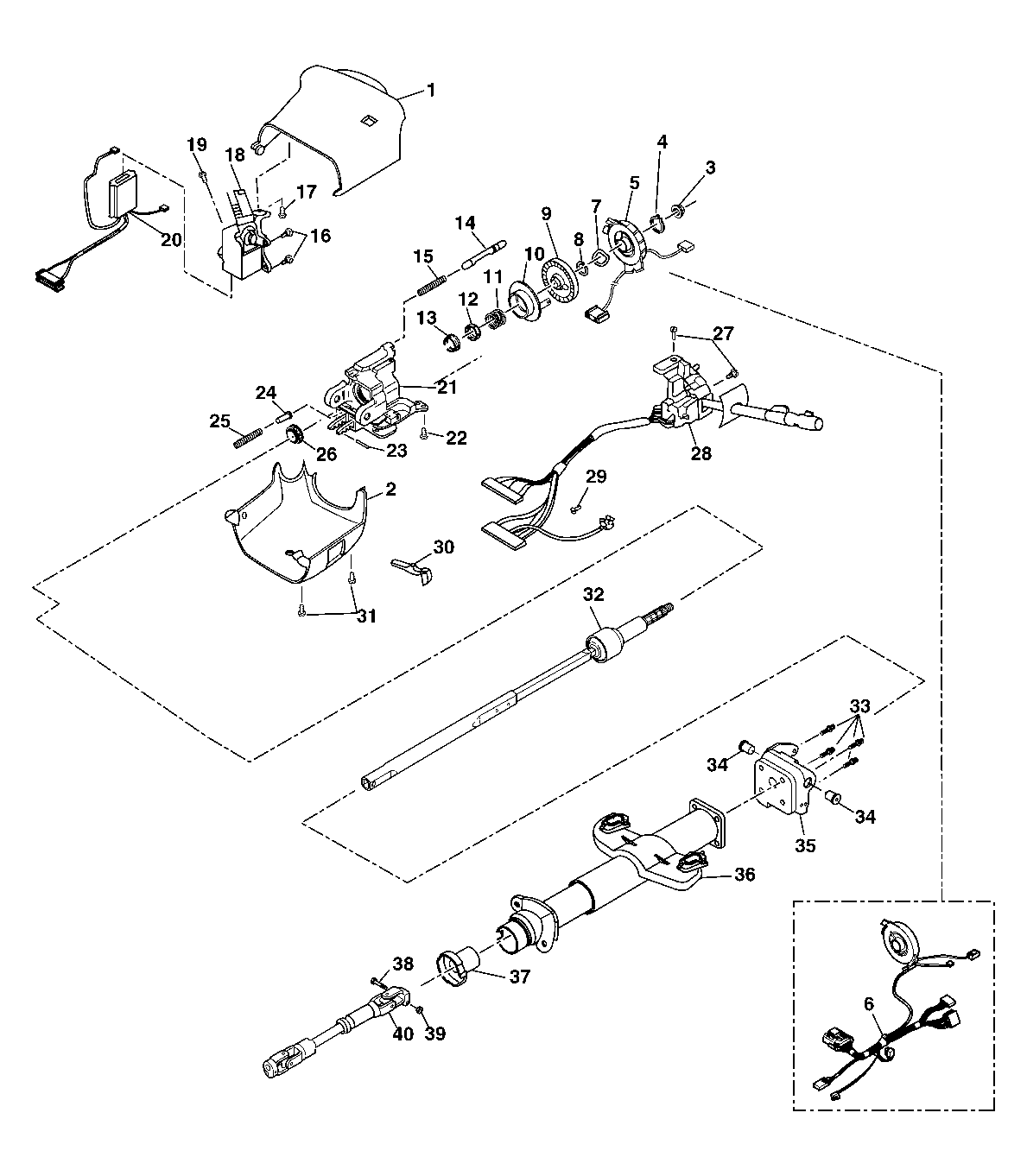

Steering Column Disassembled View (Floor Shift Lean Shaft)
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Upper Trim Cover |
| 2 | Lower Trim Cover |
| 3 | Flanged Prevailing Torque Nut |
| 4 | Retaining Ring |
| 5 | SIR Coil |
| 6 | SIR Coil and Harness Assembly |
| 7 | Wave Washer |
| 8 | Bearing Retainer |
| 9 | Shaft Lock Shield Assembly |
| 10 | Turn Signal Cancel Cam Assembly |
| 11 | Upper Bearing Spring |
| 12 | Upper Bearing Inner Race Seat |
| 13 | Inner Race |
| 14 | Lock Bolt |
| 15 | Lock Bolt Spring |
| 16 | Pan Head Tapping Screws |
| 17 | TORX® Head Screw |
| 18 | Ignition Lock Cylinder Case Assembly |
| 19 | Pan Head Tapping Screw |
| 20 | Ignition Switch Assembly |
| 21 | Steering Column Tilt Head Assembly |
| 22 | TORX® Head Screw |
| 23 | Release Lever Pin |
| 24 | Spring Guide |
| 25 | Tilt Spring |
| 26 | Bearing Assembly |
| 27 | Pan Head Tapping Screws |
| 28 | Turn Signal and Multifunction Switch Assembly |
| 29 | Axial Position Assurance Connector |
| 30 | Tilt Knob |
| 31 | Pan Head Tapping Screws |
| 32 | Steering Column Shaft Assembly |
| 33 | TORX® Head Screws |
| 34 | Pivot Pins |
| 35 | Steering Column Support Assembly |
| 36 | Steering Column Jacket Assembly |
| 37 | Adapter and Bearing Assembly |
| 38 | Bolt and Retainer Assembly |
| 39 | Hexagon Head Nut |
| 40 | Intermediate Shaft Assembly |
