Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the spark plug wire from the ignition coil.
    • Twist the spark plug boot 1/2 turn.
    • Pull only on the boot in order to remove the wire from the ignition coil.
    Fig 1: View Of Spark Plug Wire
    GM470666Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the ignition coil electrical connector.

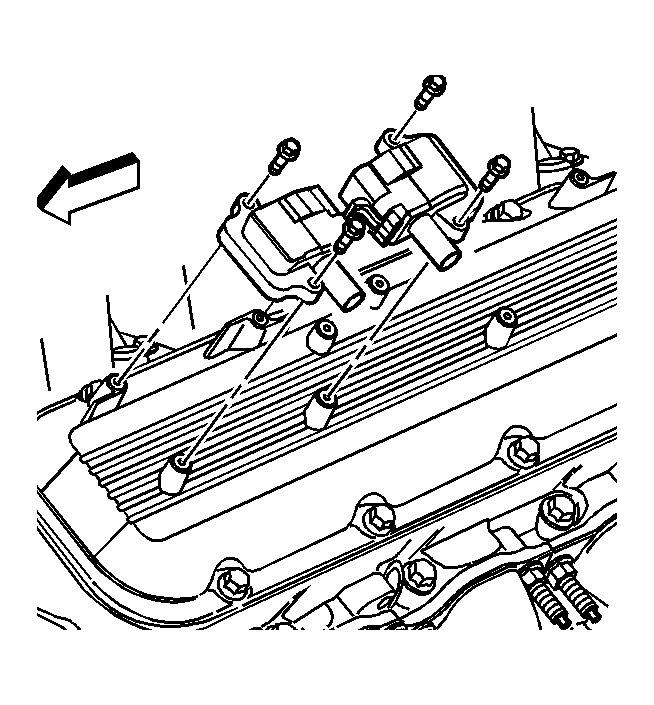

    3. Fig 2: Locating Ignition Coils
    GM470887Courtesy of GENERAL MOTORS CORP.
  3. Remove the ignition coil bolts.
  4. Remove the ignition coil.
