Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the spark plug wire to the ignition coil.
  2. Install the spark plug wire to the spark plug.
  3. Inspect the spark plug wire for proper installation:
    1. Push sideways on each boot in order to inspect the seating.
    2. Reinstall any loose boot.

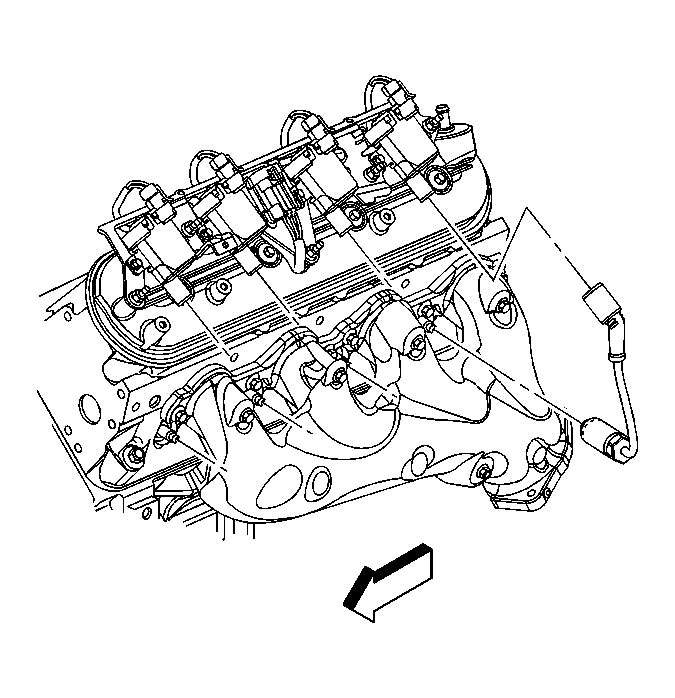

    4. Fig 1: Spark Plug Wire
    GM1239288Courtesy of GENERAL MOTORS CORP.
