DTC P0500 (8.1L): Notes

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

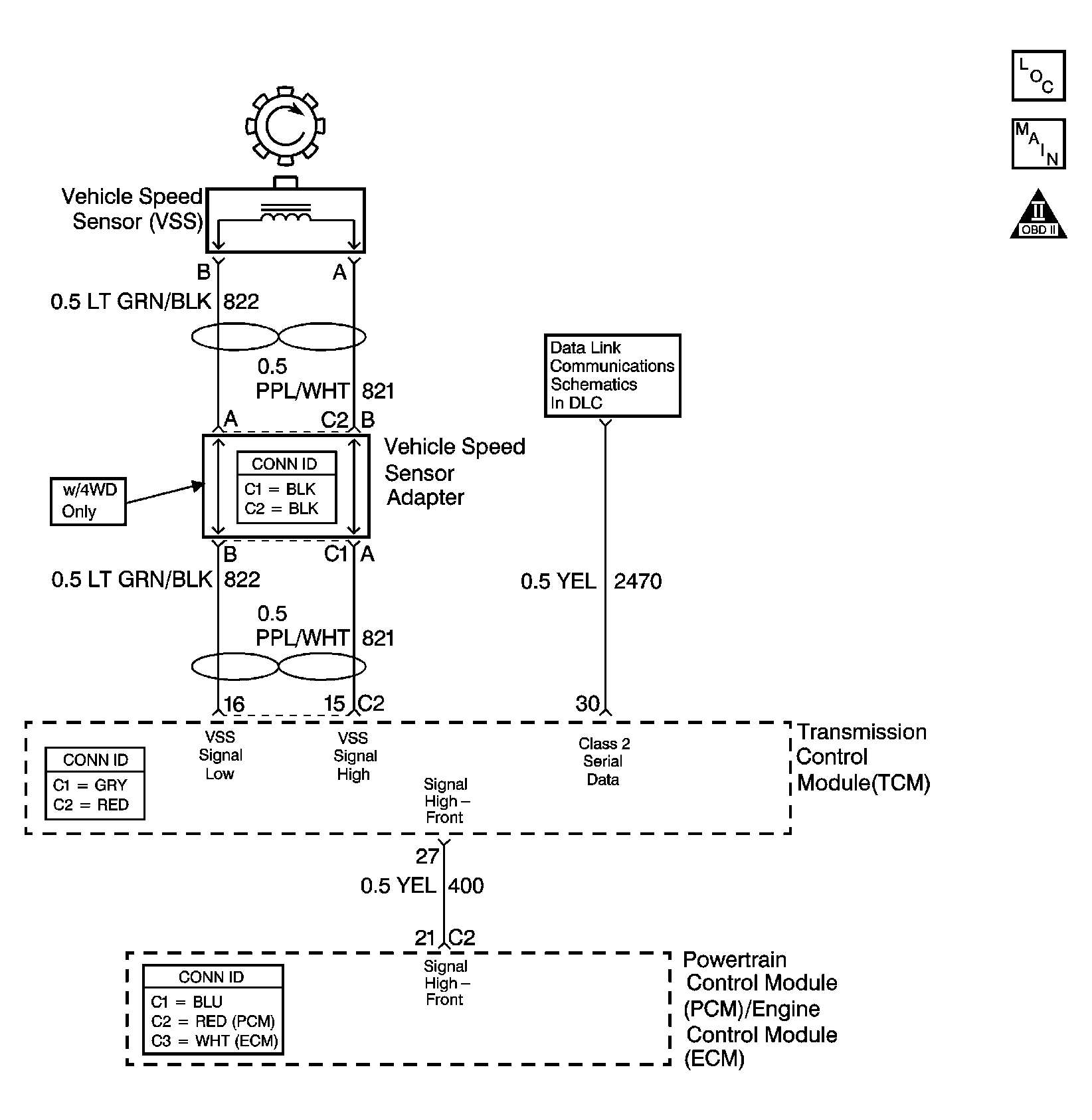

Fig 1: Vehicle Speed Sensor (VSS) Schematic
GM825344Courtesy of GENERAL MOTORS CORP.
