DTC P0500 (6.6L): Notes

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

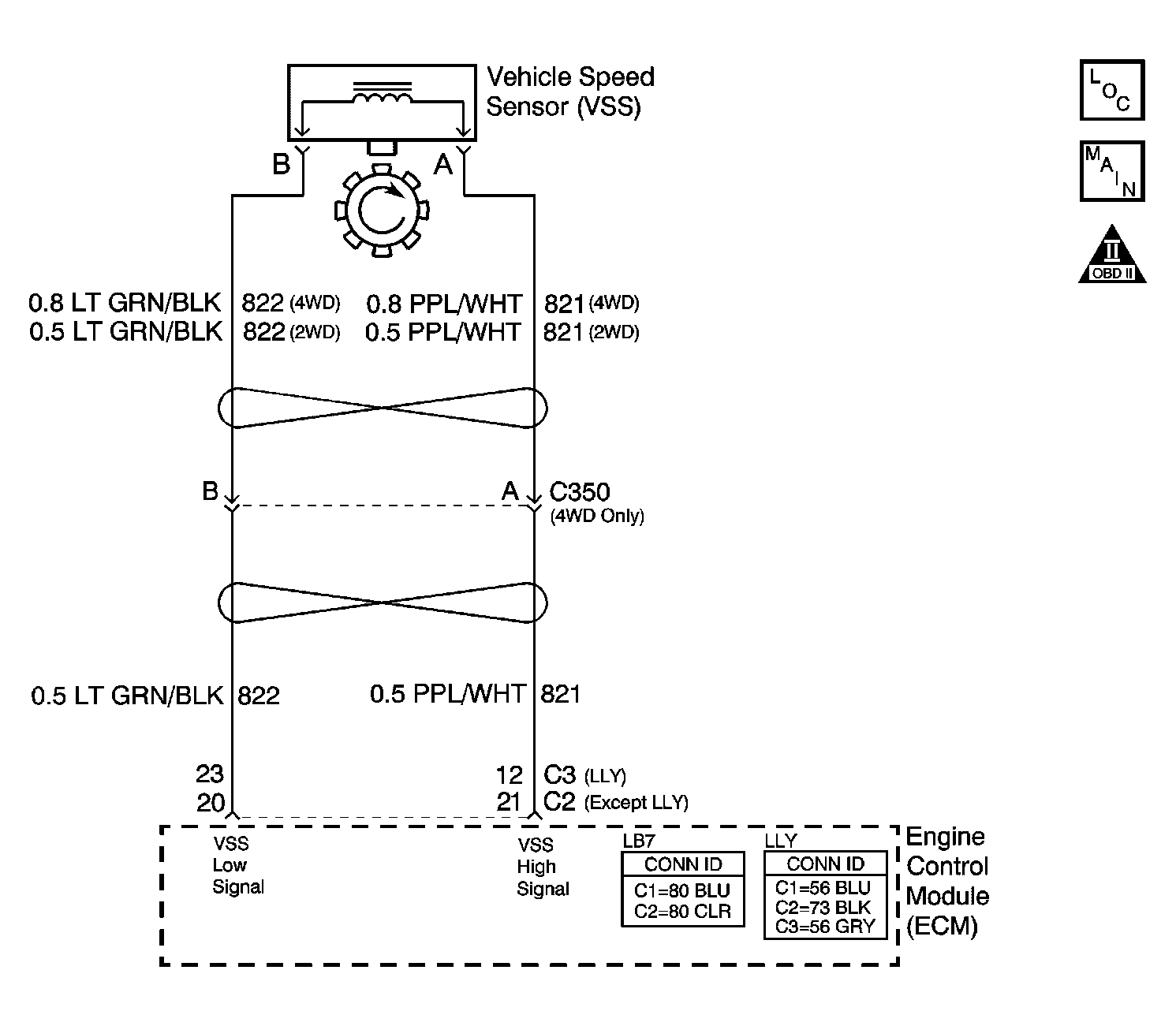

Fig 1: VSS Schematic
GM1313302Courtesy of GENERAL MOTORS CORP.
