Manual Transmission Connectors

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Clutch Start Switch

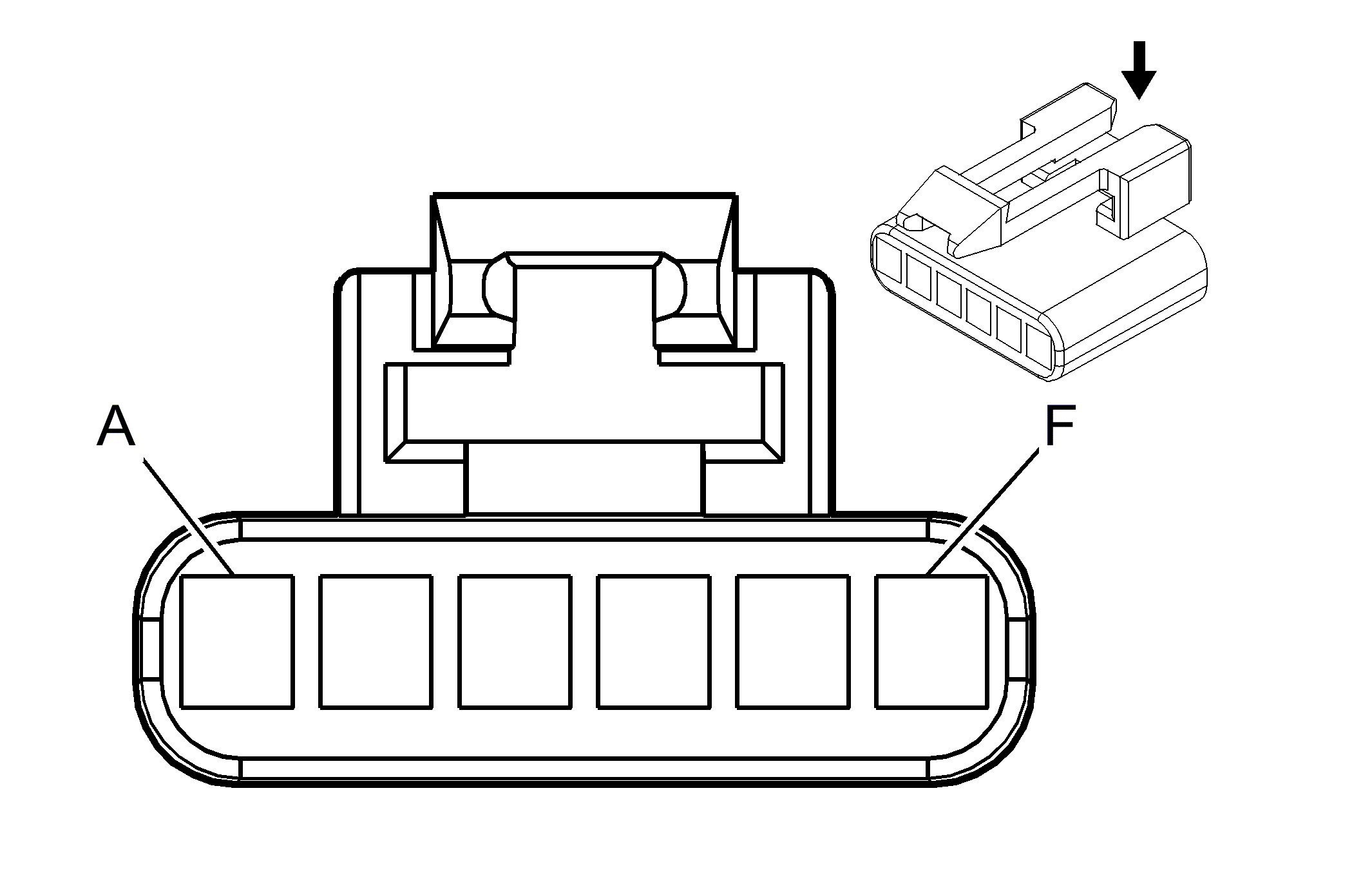

GM73231Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064860
  • 6-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A PPL 420 TCC Brake Switch
B BRN/WHT 379 CPP Switch Signal
C PNK 639 Ignition 1 Voltage
D DK GRN 1433 Clutch Start Switch Signal
E BRN 441 Ignition 3 Voltage
F GRY 48 CPP Switch Signal
Vehicle Speed Sensor

GM666646Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
1 PPL/WHT 821 VSS High Signal
2 LT GRN/BLK 822 VSS Low Signal
