Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Apply sealant GM P/N 12346004 (Canadian P/N 10953480), or equivalent to the oil drain and fill plug threads.

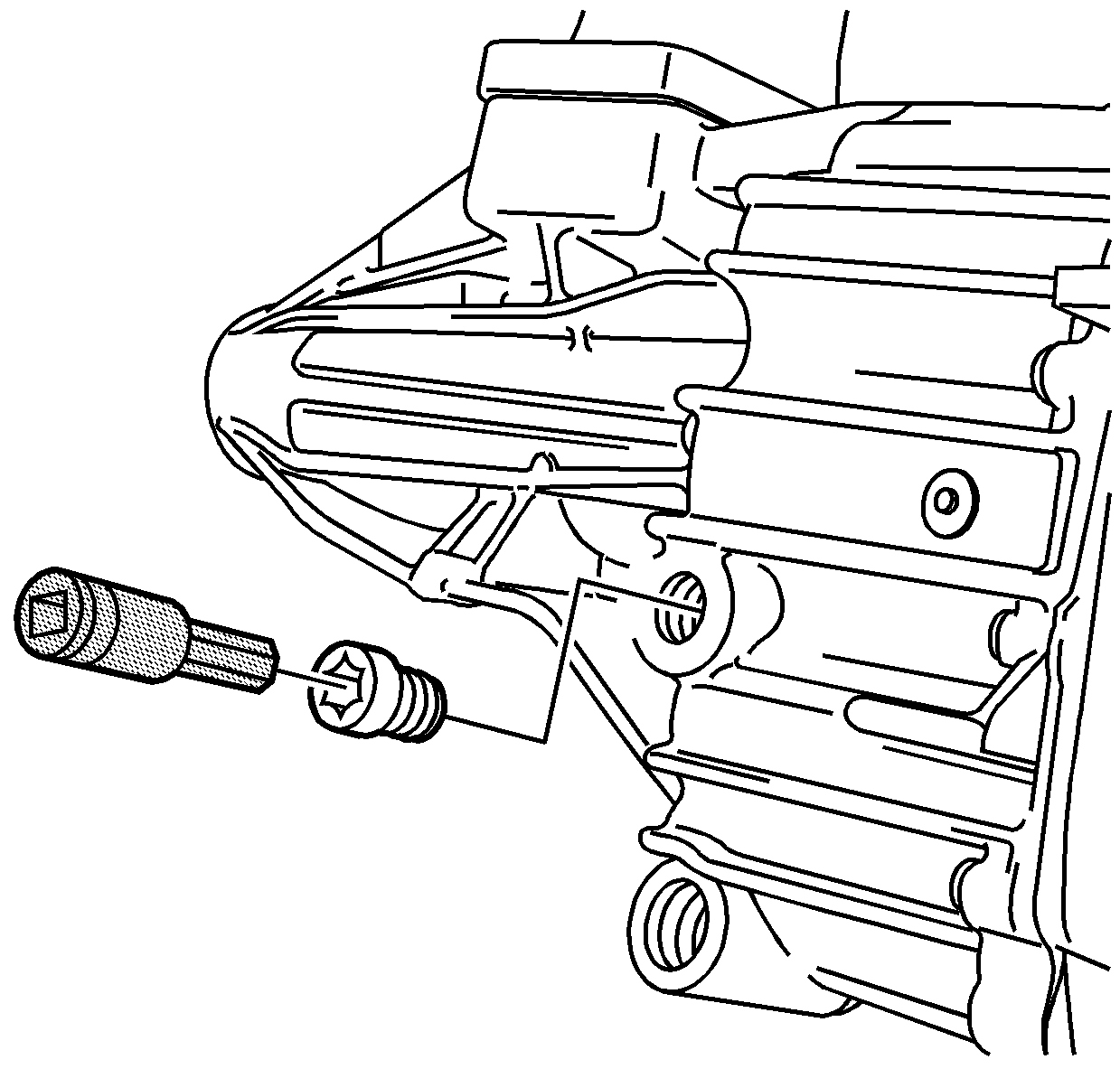

Fig 1: Applying Sealant GM P/N 12346004 (Canadian P/N 10953480) To The Oil Drain Plug Threads
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fig 2: Installing Oil Drain Plug

Courtesy of GENERAL MOTORS CORP.

Using J 36511 install the oil drain plug.
Tighten: Tighten the plug to 30 N.m (22 lb ft).
Remove and drain the drain pan used to catch the used transmission fluid.

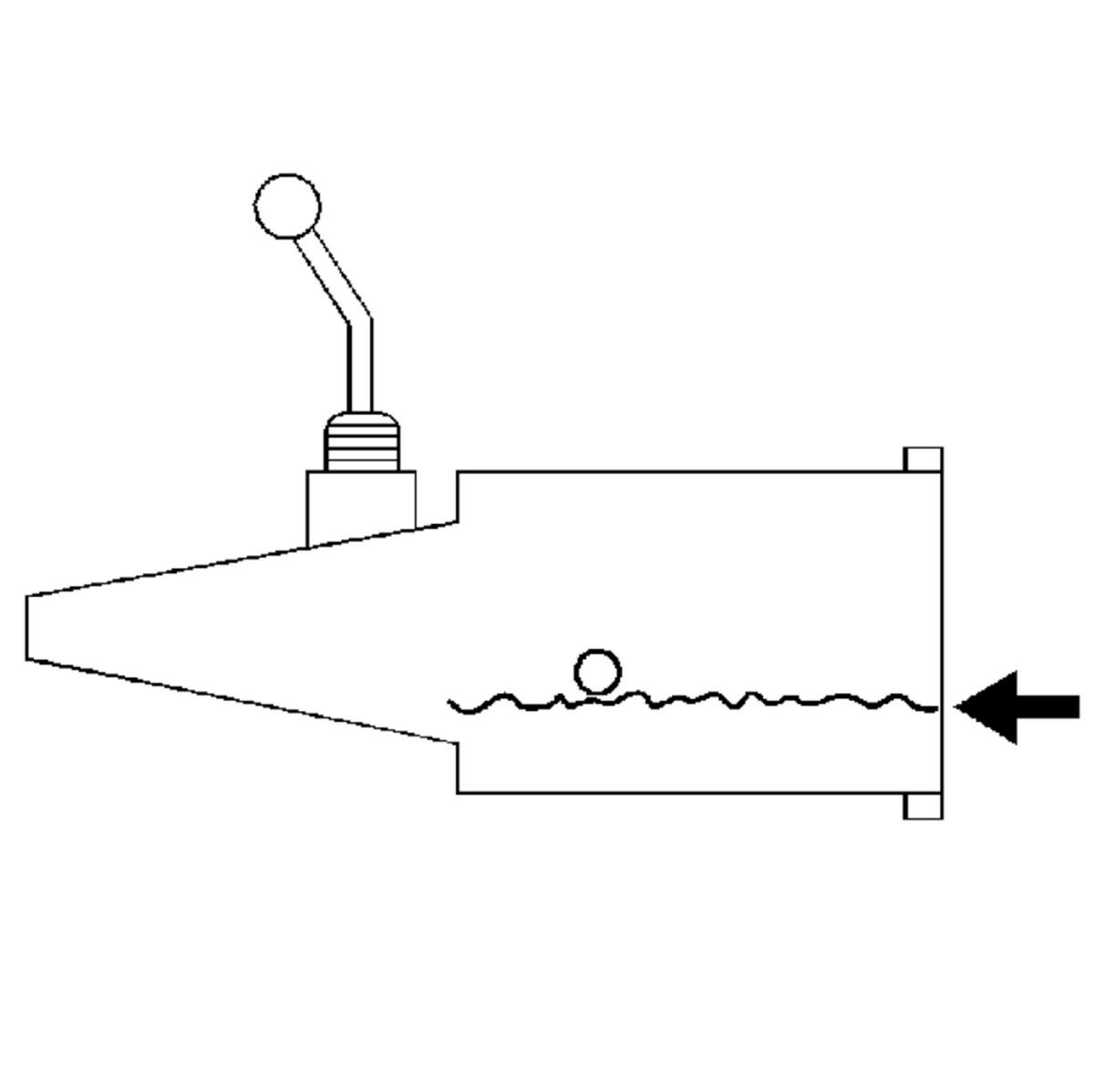

Fig 3: Filling The Transmission To Just Below The Bottom Of The Fill Plug Hole

Courtesy of GENERAL MOTORS CORP.

Fill the transmission to just below the bottom of the fill plug hole. Refer to Lubrication Specifications .
Using J 36511 install the oil fill plug.
Tighten: Tighten the plug to 30 N.m (22 lb ft).

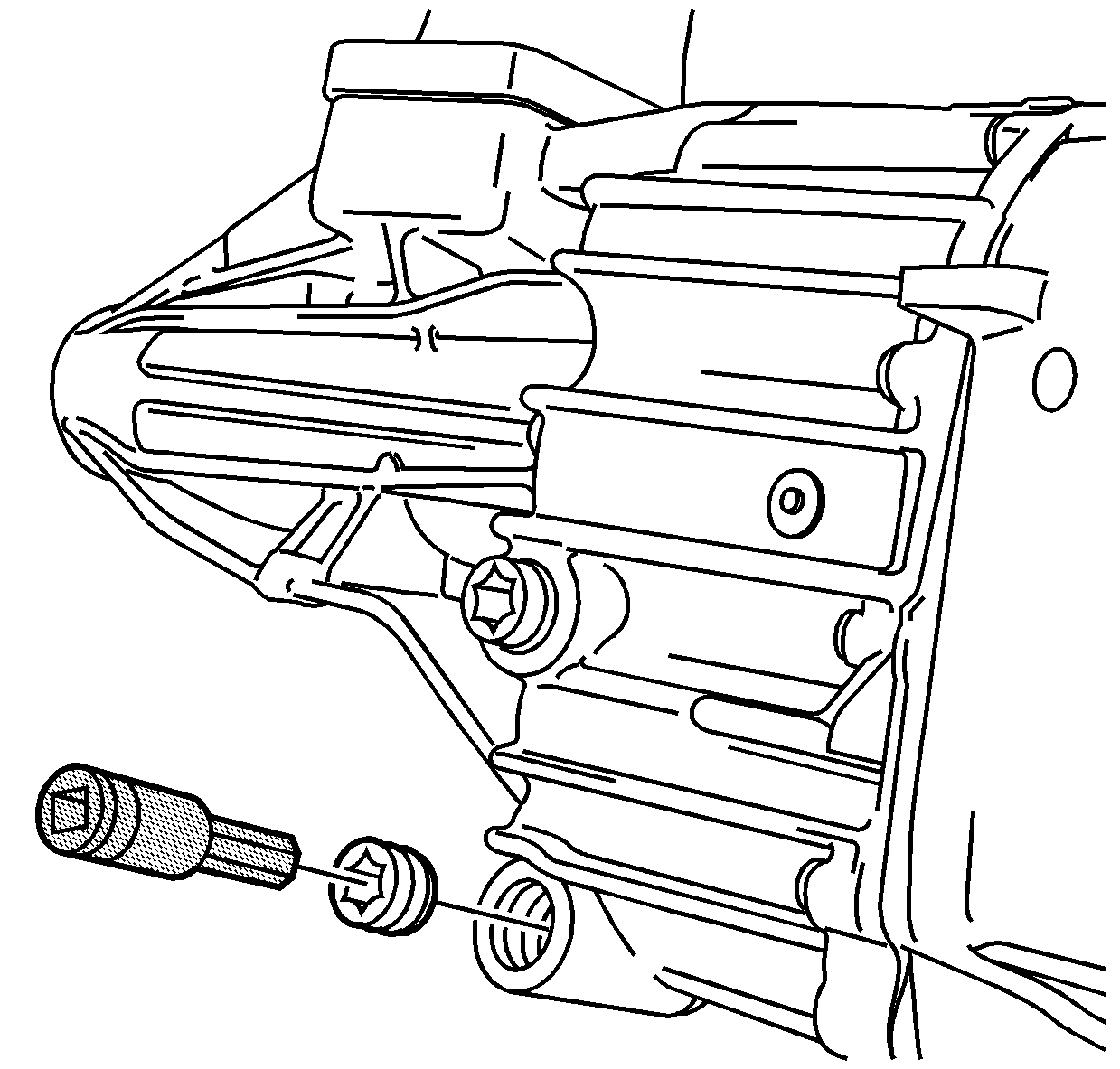

Fig 4: Installing Oil Fill Plug
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
