Manual Transmission Component Views
WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

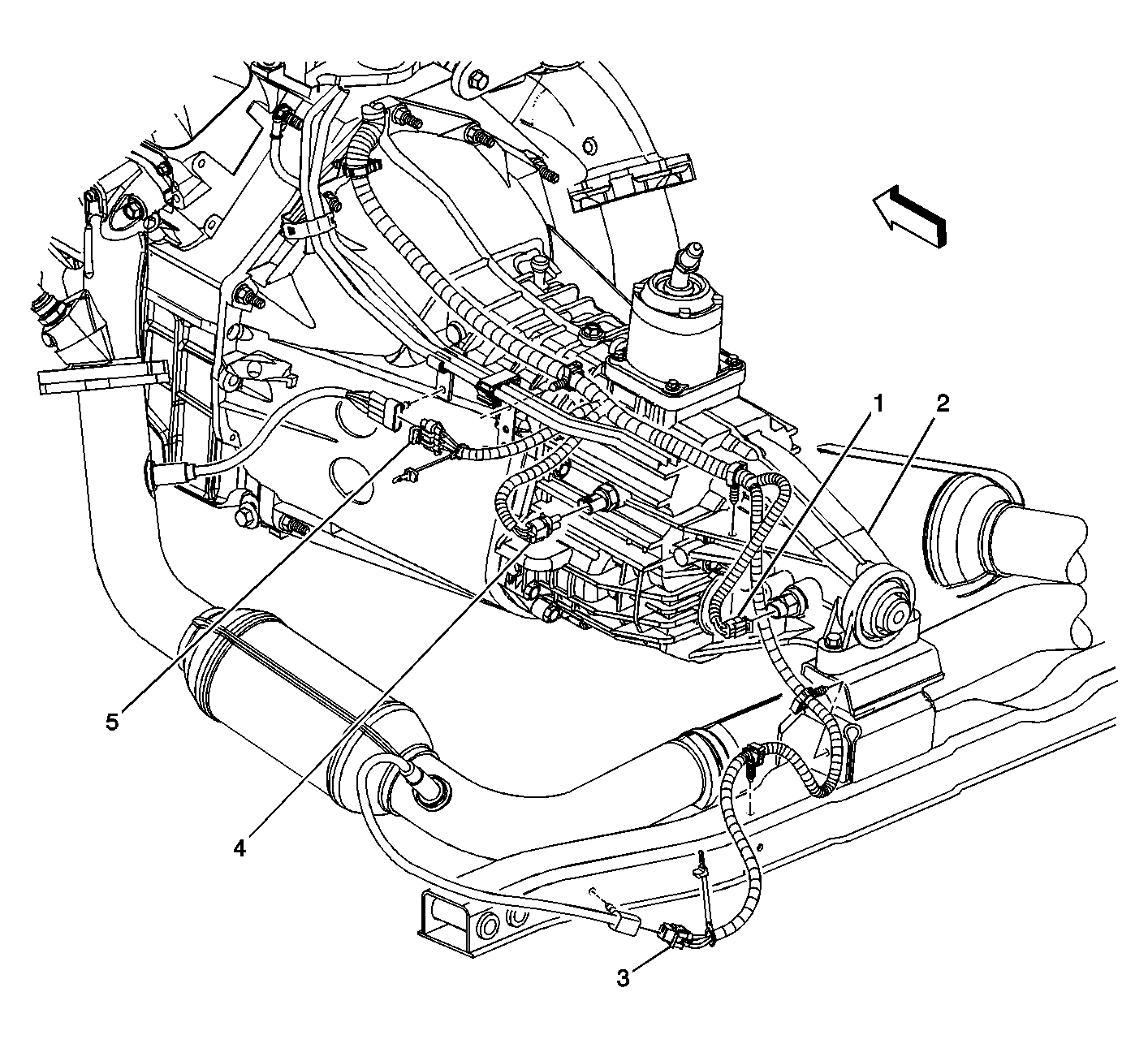

| Callout |
Component Name |
| 1 |
Vehicle Speed Sensor |
| 2 |
NV 3500 Transmission |
| 3 |
Oxygen Sensor Downstream Connector |
| 4 |
Backup Lamp Switch |
| 5 |
Oxygen Sensor Upstream Connector |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Clutch Start Switch |
| 2 |
Dash Panel |
| 3 |
Clutch Pedal |
