Bottom UNDERHOOD Junction Block

WARNING: This page is about a different car, the 2001 Chevrolet Monte Carlo and 2001 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Bottom underhood junction box is located on passenger's side of engine compartment. See Figure .

Fig 1: Identifying Bottom Underhood Junction Block Components

Courtesy of GENERAL MOTORS CORP.

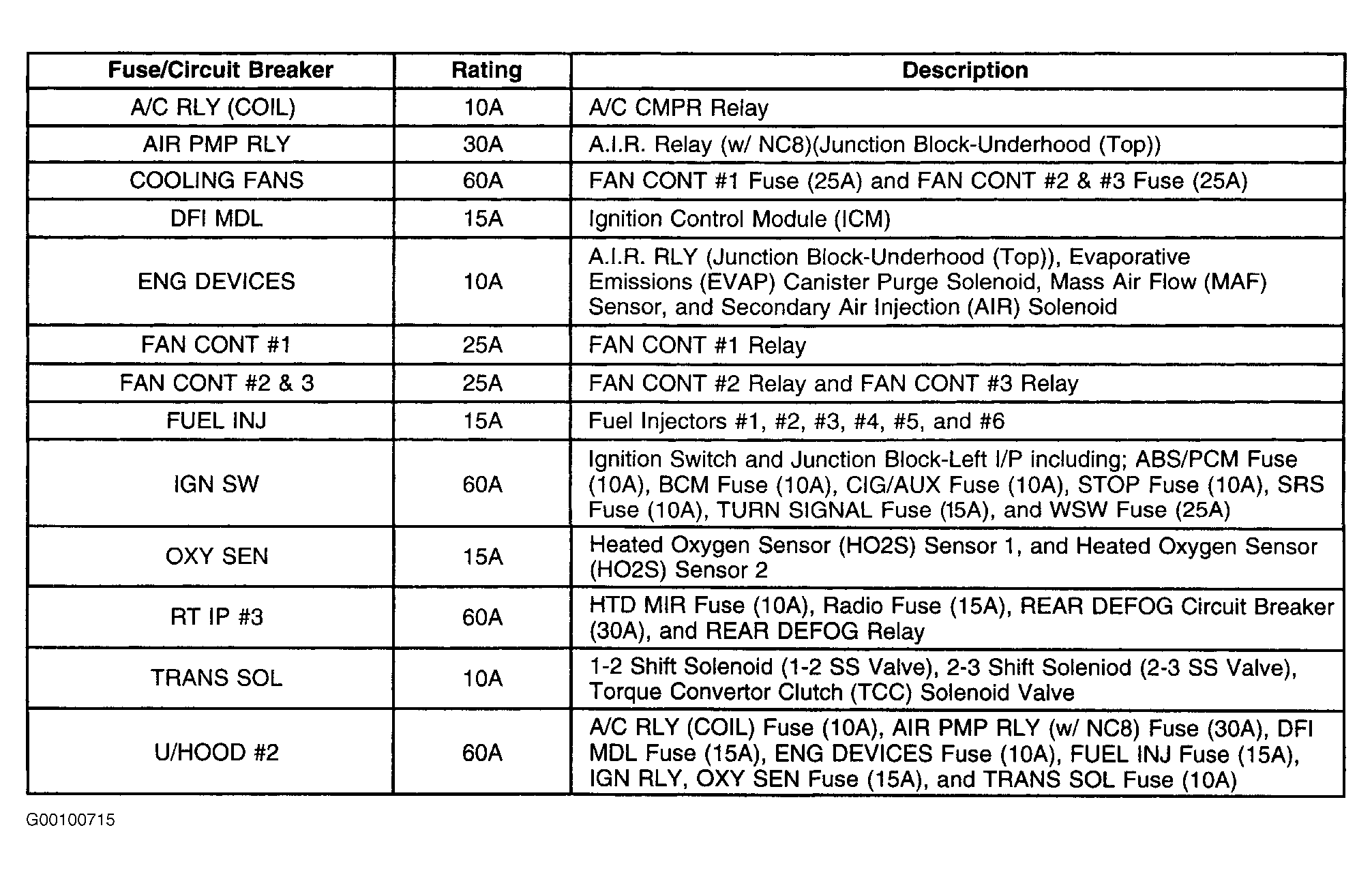

Fig 2: Bottom Underhood Junction Block Legend

Courtesy of GENERAL MOTORS CORP.
