Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt assembly. Refer to Seat Belt Retractor Replacement - Rear (Extended Cab) or Seat Belt Retractor Replacement - Rear (Crew Cab) in Seat Belts.
  2. Install the quarter panel to the vehicle.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the quarter panel trim screws.

    Tighten:  Tighten the quarter panel trim screws to 2 N.m (18 lb in).

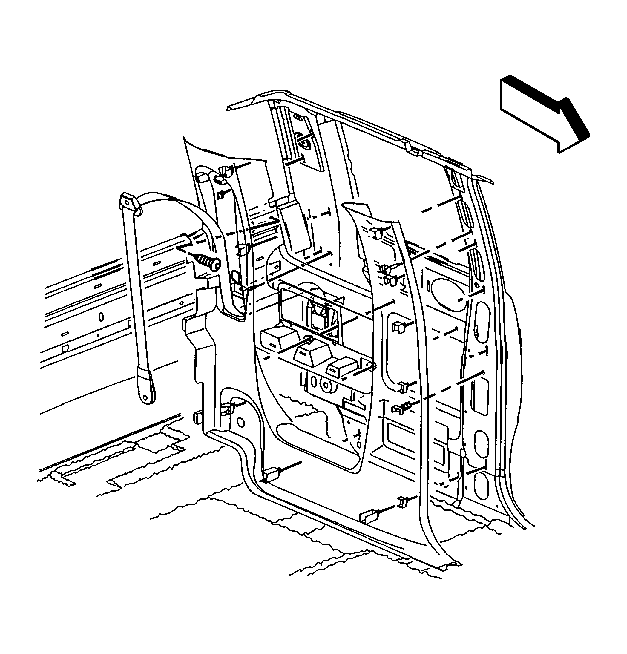

    4. Fig 1: Installing Quarter Panel Trim Screws
    GM348551Courtesy of GENERAL MOTORS CORP.
  4. Install the sill trim plates. Refer to Door Sill Plate Replacement - Front  .
  5. Install the armrest.
    6. Fig 2: Installing Armrest
    GM348548Courtesy of GENERAL MOTORS CORP.
  6. Install the armrest screw.

    Tighten:  Tighten the armrest screw to 2 N.m (18 lb in).

    7. Fig 3: Installing Armrest Screw
    GM373585Courtesy of GENERAL MOTORS CORP.
  7. Install the rear window molding. Refer to Molding Replacement - Rear Window Lower  .
  8. Install the rear seat if necessary. Refer to Seat Replacement - Rear (Extended Cab w/4th Door) , Seat Replacement - Rear (Extended Cab) or Seat Replacement - Rear (60/40 Split) in Seats.
