Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

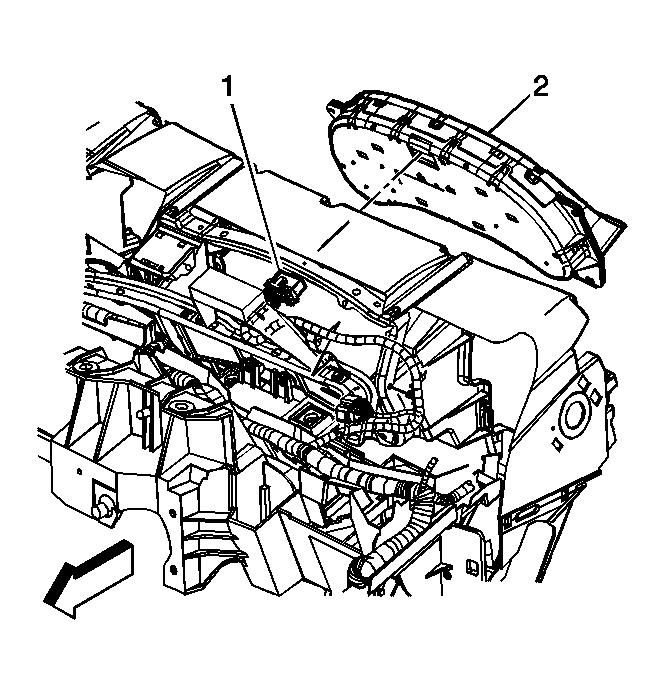

  1. Connect the IPC harness (1) to the IPC (2).
    2. Fig 1: Connecting IPC Harness
    GM854865Courtesy of GENERAL MOTORS CORP.
  2. Install the IPC onto the I/P with the screws. Tilt the top of the cluster into the retainer first to avoid damaging the flexible circuit connections.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws that retain the IPC to the I/P assembly.

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

    4. Fig 2: Installing IPC Assembly
    GM348794Courtesy of GENERAL MOTORS CORP.
  4. Install the IPC trim plate bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster .

    When the IPC is replaced the new IPC will need to be programmed. Refer to Service Programming System (SPS) in Programming and Setup.
