Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cup holder by pushing inwards till the clips (1) click in place.
  2. Ensure around the corners of the cup holder is seated properly.

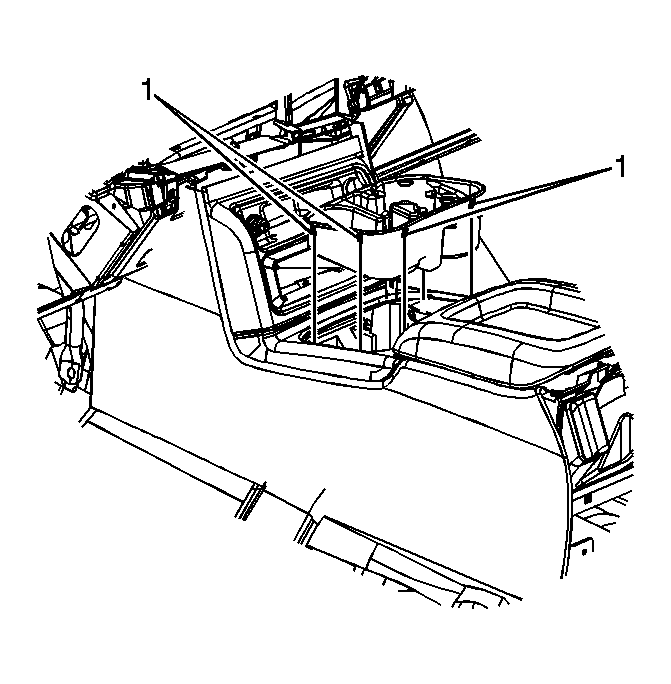

    3. Fig 1: Installing Cupholder (Non-Luxury)
    GM854845Courtesy of GENERAL MOTORS CORP.
