Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Place the cupholder assembly over the console.
Connect the wire connector to the cupholder assembly.
Push on the corners of the cupholder assembly till all the retaining clips (2) are seated.

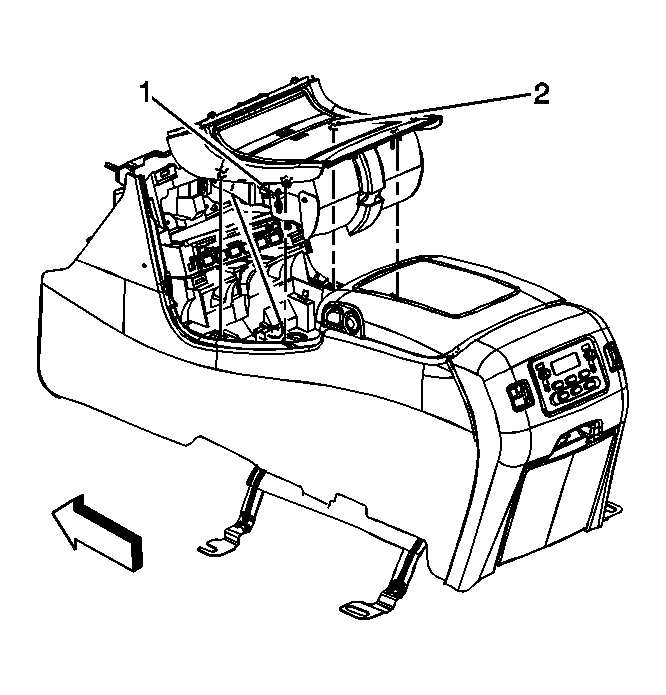

Fig 1: Installing Cupholder (Luxury)

Courtesy of GENERAL MOTORS CORP.

Install the remote CD player if equipped. Refer to Remote CD Player Replacement in Entertainment.
Install the upper trim bezel. Refer to Bezel Replacement - Floor Console (Non-Luxury Upper) , Bezel Replacement - Floor Console (Luxury Upper) or Bezel Replacement - Floor Console (Non-Luxury Lower) .
