Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

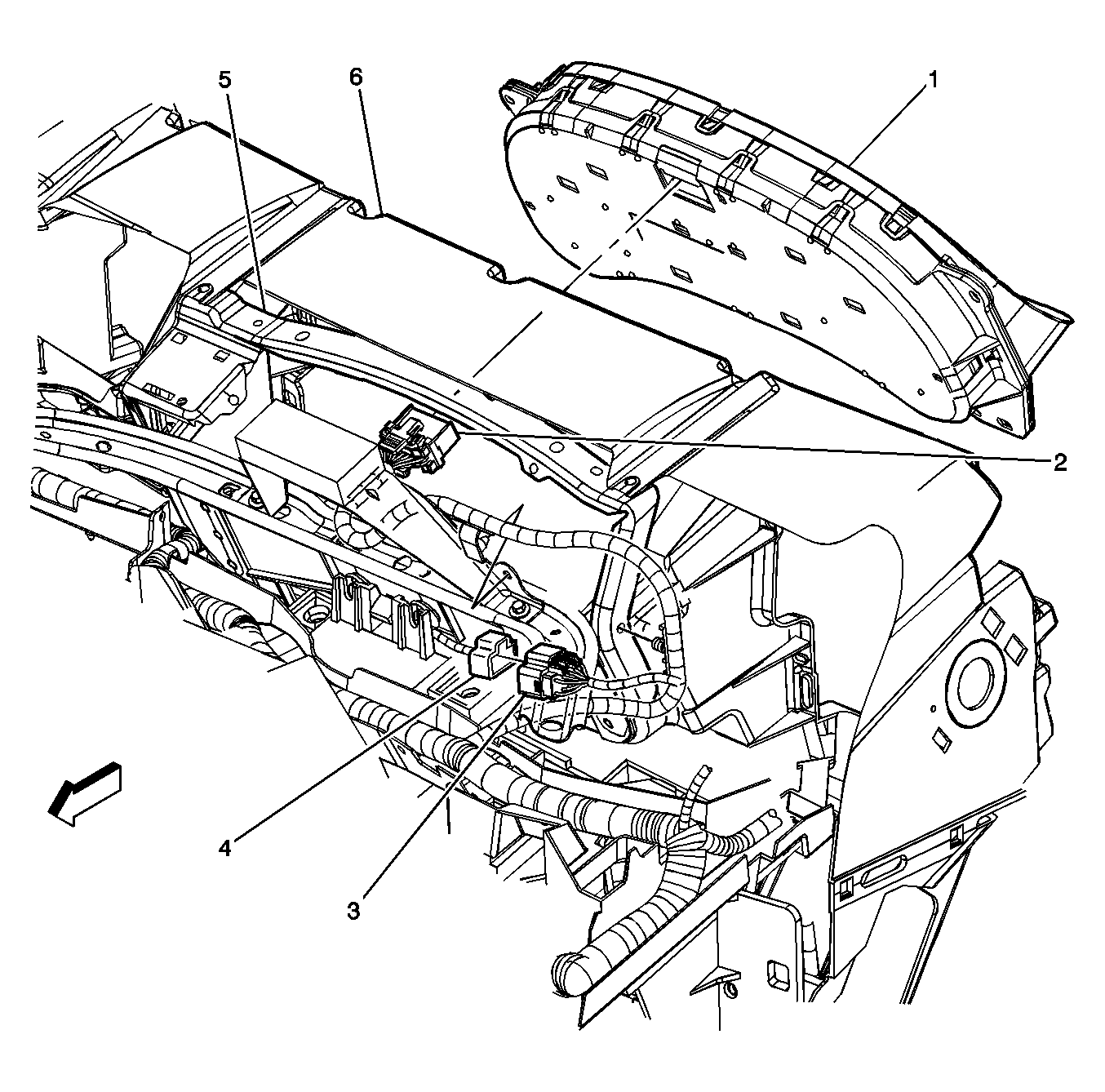

Fig 1: Instrument Panel Component Views - Left Rear Top

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Cluster
2	Instrument Cluster Connector
3	C214-I/P Side
4	C214-Headliner Side
5	Instrument Cluster Brace
6	Instrument Panel

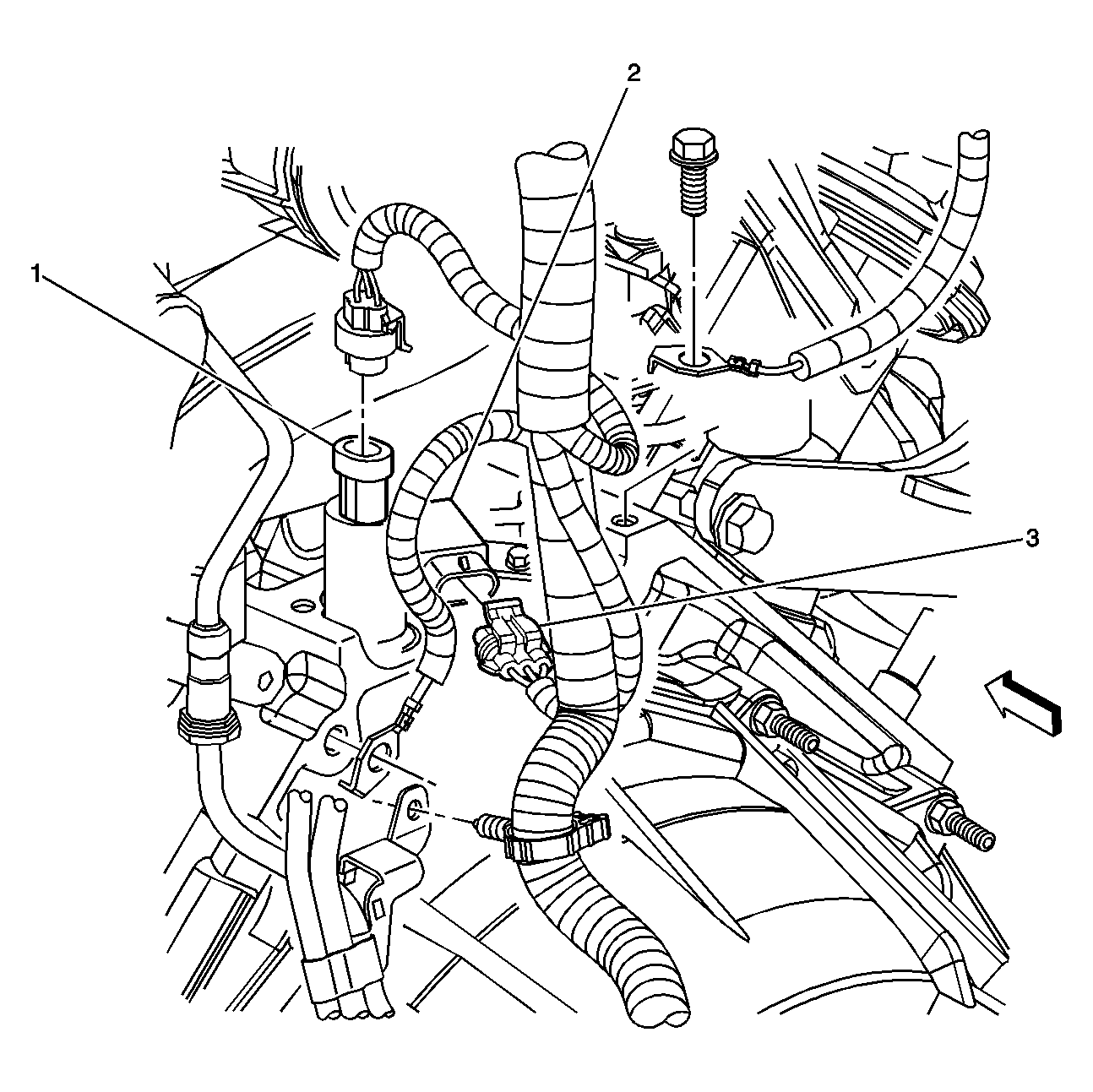

Fig 2: Rear Of The Engine Component Views - 4.3L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Engine Oil Pressure (EOP) Switch
3	Knock Sensor (KS)

Fig 3: Rear Of The Engine Component Views - 4.8, 5.3, 6.0L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure (EOP) Sensor
2	Camshaft Position (CMP) Sensor
3	Camshaft Position (CMP) Sensor Connector

Fig 4: Rear Of The Engine Component Views - 8.1L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	Engine
3	Engine Oil Pressure (EOP) Sensor Connector
4	Ground Strap
5	Crankshaft Position (CKP) Sensor Connector
6	G103

Fig 5: Left Side Of The Engine Component Views - 6.6L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Glow Plug 2
2	Fuel Injector 2
3	Fuel Injector 4
4	Glow Plug 4
5	Fuel Injector 6
6	Glow Plug 6
7	Fuel Injector 8
8	Glow Plug 8
9	Engine Oil Pressure (EOP) Sensor
10	Engine Oil Level Switch

Fig 6: Right Side Of The Engine Component Views - 8.1L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Battery Relay Connector (TP2)
2	A/C Low Pressure Switch Connector
3	Manifold Absolute Pressure (MAP) Sensor
4	Engine Coolant Temperature (ECT) Sensor
5	C149
6	S157
7	Coolant Level Switch Connector
8	S160
9	Throttle Actuator Control (TAC) Motor Connector C1
10	C153
11	A/C Compressor Clutch Connector
12	A/C Refrigerant Pressure Sensor Connector
13	Knock Sensor (KS) - Bank 2
14	Engine Oil Level Switch Connector
15	Starter Solenoid Power
16	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

Fig 7: Right Side Of The Engine Component Views - 4.8, 5.3, And 6.0L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor Connector
2	S102
3	Auxiliary Battery Relay Connector (TP2)
4	Evaporative Emission (EVAP) Canister Purge Solenoid
5	Throttle Actuator Control (TAC) Connector
6	Coolant Level Switch Connector
7	Intake Air Temperature (IAT)/ Mass Air Flow (MAF) Sensor Connector
8	A/C Refrigerant Pressure Sensor Connector
9	A/C Compressor Clutch Connector
10	A/C Low Pressure Switch Connector
11	Engine Oil Level Switch Connector
12	Camshaft Position (CMP) Sensor Connector
13	Engine Oil Pressure (EOP) Sensor Connector

Fig 8: Top Of The Engine Component Views - 6.6L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Heater
2	Fuel Filter
3	Water In Fuel (WIF) Sensor
4	Fuel Pressure Sensor
5	Fuel Temperature Sensor
6	Glow Plug Controller
7	Baro Sensor
8	Boost Pressure Sensor
9	Fuel Pressure Regulator
10	Fuel Injection Control Module (FICM)
11	Exhaust Gas Recirculation (EGR) Valve

Fig 9: Fuel Tank Component Views - Primary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly - Primary Connector (Gas)/Fuel Level Sensor - Primary Connector (Diesel)
2	Fuel Pump and Sender Assembly - Primary (Gas)/Fuel Level Sensor - Primary (Diesel)

Fig 10: Fuel Tank Component Views - Secondary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly - Secondary (Gas)/Fuel Level Sensor - Secondary (Diesel)
2	Fuel Pump (Diesel Only)
